Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch

Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch

    • Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
    • Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
    • Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
  • Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch

    Product Details:

    Place of Origin: Japan
    Brand Name: CMO
    Certification: ISO9001
    Model Number: G133I1-L01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G133I1-L01 Panel Brand: CMO
    Descrition: 1280×800 Panel Type: A-Si TFT-LCD
    Active Area: 286.08×178.8 Mm Outline: 304.6×195×8 Mm

    New and original G133I1-L01 CMO a-Si TFT-LCD ,13.3 inch, 1280×800 for Industrial Application



    G133I1-L01 Basic Information

    Panel Model G133I1-L01
    Panel Brand CMO
    Descrition a-Si TFT-LCD ,13.3 inch, 1280×800
    Panel Type a-Si TFT-LCD
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C



    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    G133I1-L01 Mechanical Features

    Dot Resolution 1280(RGB)×800 (WXGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 113 PPI
    Aspect Ratio 16:10 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0745×0.2235 mm (H×V)
    Pixel Pitch 0.2235×0.2235 mm (H×V)
    Weight 450/465g (Typ./Max.)
    Surface Antiglare (Haze 25%)
    Active Area 286.08×178.8 mm (H×V)
    Bezel Area 289.1×181.8 mm (H×V)
    Outline Dimension 304.6×195 mm (H×V)
    Outline Depth 7.7/8.0 (Typ./Max.) mm
    Holes & Brackets Side mounting holes (6-M2) on left, right bezel; Face mounting holes (3 pcs) on left, right slugs
    Landscape or Portrait Landscape type
    Touch Panel Without





    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    G133I1-L01 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 6/10 (Typ.)(Tr/Td)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.45 (Max.)(5 points)
    Sunlight Readable N



    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship.

    G133I1-L01 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No



    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    V400DK1-QS1 Innolux 40" 3840×2160
    V500HJ1-PE6 Innolux 50" 1920×1080
    V580DK1-PS1 Innolux 58" 3840×2160
    F04004-03Z Innolux 4.0" 480×800
    V546HK7-PS1 Innolux 55" 1920×1080
    V650DK1-PS1 Innolux 65" 3840×2160
    V645H1-PE1 Innolux 65" 1920×1080
    Q0A411-601 Innolux 10.4" 800×600

    We also have other industrial LCD panels, pls contact to us for the further information

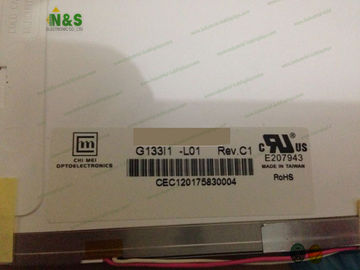

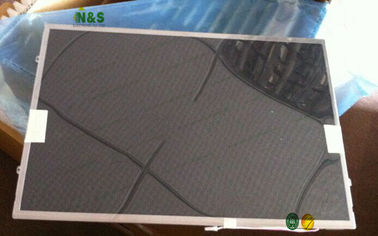

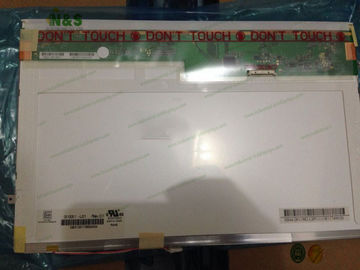

    G133I1-L01   pictures
