New / Original Medical LCD Display , G220SVN01.0 Industrial LCD Screen 22.0 Inch 1680×1050

New / Original Medical LCD Display , G220SVN01.0 Industrial LCD Screen 22.0 Inch 1680×1050

New / Original Medical LCD Display , G220SVN01.0 Industrial LCD Screen 22.0 Inch 1680×1050

Product Details:

Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G220SVN01.0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now
Detailed Product Description
Panel Model: G220SVN01.0 Panel Brand: AUO
Descrition: 1680×1050 Panel Type: A-Si TFT-LCD
Active Area: 473.76×296.1 Mm Outline: 493.7×320.1×15.75 Mm

New and original G220SVN01.0 AUO a-Si TFT-LCD ,22.0 inch, 1680×1050 for 60Hz

G220SVN01.0 Basic Information

Panel Model G220SVN01.0
Panel Brand AUO
Descrition a-Si TFT-LCD ,22.0 inch, 1680×1050
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C





Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

G220SVN01.0 Mechanical Features

Dot Resolution 1680(RGB)×1050 (WSXGA+)
Pixel Configuration RGB Vertical Stripe
Pixel Density 90 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.094×0.282 mm (H×V)
Pixel Pitch 0.282×0.282 mm (H×V)
Weight 2.1Kgs (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 473.76×296.1 mm (H×V)
Bezel Area 477.7×300.1 mm (H×V)
Outline Dimension 493.7×320.1 mm (H×V)
Outline Depth 15.75 (Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.

G220SVN01.0 Optical Features

Display Mode MVA, Normally Black, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 2000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (6-bit + Hi-FRC)
Color Gamut 70% NTSC (CIE1931)
Response Time 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable N



Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

G220SVN01.0 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 28W (Typ.)





Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H152IN00 V1 AUO 1.5" 128×128
A080XTN01.1 AUO 8.0" 1024×768
A116XW02 V0 CELL AUO 11.6" 1366×768
T420QVN01.2 CELL AUO 42" 3840×2160
T420QVN01.0 CELL AUO 42" 3840×2160
T430QVN01.0 CELL AUO 43" 3840×2160
T500QVN02.0 CELL AUO 50" 3840×2160
T550QVR02.0 CELL AUO 55" 3840×2160

We also have other industrial LCD panels, pls contact to us for the further information

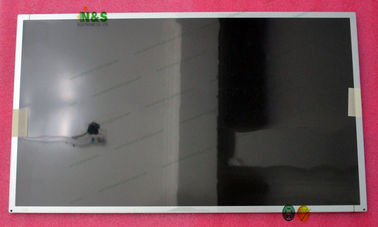

G220SVN01.0pictures





New / Original Medical LCD Display , G220SVN01.0 Industrial LCD Screen 22.0 Inch 1680×1050
