G101EVN01.0 AUO LCD Panel A-Si TFT-LCD 10.1 Inch 1280×800 Industrial Application

G101EVN01.0 AUO LCD Panel A-Si TFT-LCD 10.1 Inch 1280×800 Industrial Application

G101EVN01.0 AUO LCD Panel A-Si TFT-LCD 10.1 Inch 1280×800 Industrial Application

Product Details:

Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G101EVN01.0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now
Detailed Product Description
Panel Model: G101EVN01.0 Panel Brand: AUO
Descrition: 1280×800 Panel Type: A-Si TFT-LCD
Active Area: 216.96×135.6 Mm Outline: 229.46×149.2×5.54 Mm

G101EVN01.0 AUO a-Si TFT-LCD ,10.1 inch, 1280×800 for Industrial Application



Panel Brand AUO
Descrition a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 60 °C
Storage Temperature -30 ~ 70 °C



Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

G101EVN01.0 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 149 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0565×0.1695 mm (H×V)
Pixel Pitch 0.1695×0.1695 mm (H×V)
Weight 187g (Max.)
Surface Hard coating (3H), Reflection 1.5% (Max.)
Active Area 216.96×135.6 mm (H×V)
Bezel Area 220.36×139.1 mm (H×V)
Outline Dimension 229.46×149.2 mm (H×V)
Outline Depth 3.76/5.54 (Typ./Max.) mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without



Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.

G101EVN01.0 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 3.4W (Max.)



Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

G101EVN01.0 Optical Features

Display Mode MVA, Normally Black, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1300 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N





Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T420HVN06.0 CELL AUO 42" 1920×1080
T550HVN03.1 CELL AUO 55" 1920×1080
T460HVN08.2 CELL AUO 46" 1920×1080
H200HN05 V3 AUO 2.0" 176×220
H176HN02 V0 AUO 1.8" 176×220
B104XN02 V0 AUO 10.4" 1024×768
T650HVN05.3 CELL AUO 65" 1920×1080
A116XTN02.0 AUO 11.6" 1366×768
H280QW01 V0 AUO 2.8" 240×400



We also have other industrial LCD panels, pls contact to us for the further information

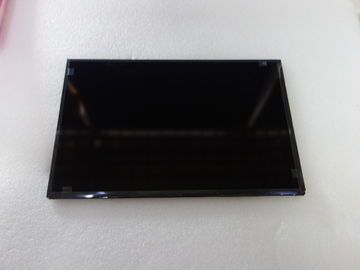

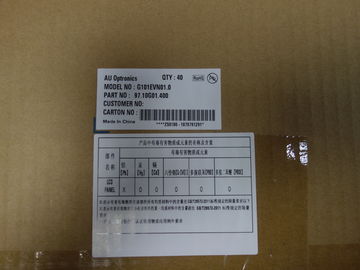

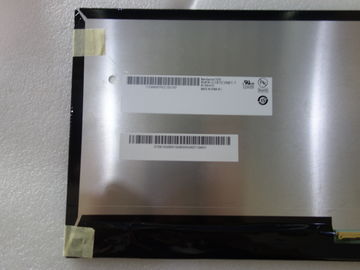

G101EVN01.0 pictures











G101EVN01.0 AUO LCD Panel A-Si TFT-LCD 10.1 Inch 1280×800 Industrial ApplicationG101EVN01.0 AUO LCD Panel A-Si TFT-LCD 10.1 Inch 1280×800 Industrial Application
