G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color

G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color

    • G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color
    • G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color
    • G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color
  • G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color

    Product Details:

    Place of Origin: Japan
    Brand Name: CMO
    Certification: ISO9001
    Model Number: G121X1-L01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G121X1-L01 Panel Brand: CMO
    Descrition: 1024×768 Panel Type: A-Si TFT-LCD
    Active Area: 245.76×184.32 Mm Outline: 260.5×204×12.7 Mm

    New and original G121X1-L01 CMO a-Si TFT-LCD ,12.1 inch, 1024×768 for Medical Imaging

    G121X1-L01 Basic Information

    Panel Model G121X1-L01
    Panel Brand CMO
    Descrition a-Si TFT-LCD ,12.1 inch, 1024×768
    Panel Type a-Si TFT-LCD
    Operating Temperature -30 ~ 70 °C
    Storage Temperature -40 ~ 80 °C





    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    G121X1-L01 Mechanical Features

    Dot Resolution 1024(RGB)×768 (XGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 105 PPI
    Aspect Ratio 4:3 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.080×0.240 mm (H×V)
    Pixel Pitch 0.240×0.240 mm (H×V)
    Weight 660g (Max.)
    Surface Antiglare (Haze 25%), Hard coating (3H)
    Active Area 245.76×184.32 mm (H×V)
    Bezel Area 249.0×187.5 mm (H×V)
    Outline Dimension 260.5×204 mm (H×V)
    Outline Depth 8.42/12.7 (Typ./Max.) mm
    Holes & Brackets Side mounting holes (4-M2) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without

    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.

    G121X1-L01 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 13/12 (Typ.)(Tr/Td)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity Wx:0.303; Wy:0.319
    White Variation 1.25/1.40 (Typ./Max.)(5 points)
    Sunlight Readable N

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    G121X1-L01 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LR430LC6001 Innolux 4.3" 480×272
    V650DK1-PS7 Innolux 65" 3840×2160
    V580HJ1-PE6 Innolux 58" 1920×1080
    V650DK1-QS1 Innolux 65" 3840×2160
    M236HGJ-P02 Innolux 23.6" 1920×1080
    86A07029-00 Innolux 7.0" 800×480
    V315H3-P03 Innolux 31.5" 1920×1080
    F07013-01D Innolux 7.0" 800×480



    We also have other industrial LCD panels, pls contact to us for the further information

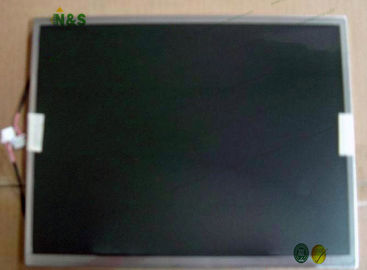

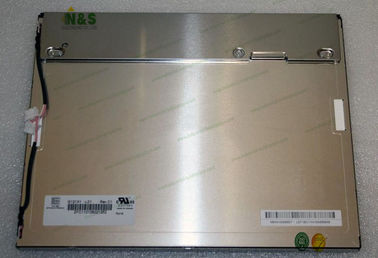

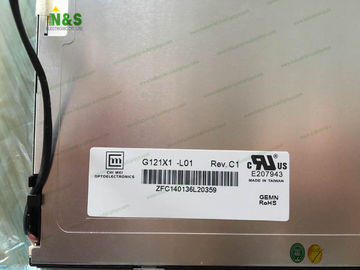

    G121X1-L01  pictures



    G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color





    G121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display ColorG121X1-L01 AUO LCD Panel CMO A-Si TFT-LCD 12.1 Inch 262K Display Color
