15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density

15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density

    • 15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density
    • 15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density
    • 15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density
  • 15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density

    Product Details:

    Place of Origin: KOREA
    Brand Name: AUO
    Certification: ISO9001
    Model Number: G150XTN01.0

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G150XTN01.0 Panel Brand: AUO
    Descrition: 1024×768 Panel Type: A-Si TFT-LCD
    Active Area: 304.128×228.096 Mm Outline: 326.5×253.5×13.1 Mm

    G150XTN01.0 AUO a-Si TFT-LCD ,15.0 inch, 1024×768 for Medical Imaging



    G150XTN01.0 Basic Information

    Panel Model G150XTN01.0
    Panel Brand AUO
    Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
    Panel Type a-Si TFT-LCD
    Operating Temperature -30 ~ 85 °C
    Storage Temperature -30 ~ 85 °C



    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    G150XTN01.0 Mechanical Features

    Dot Resolution 1024(2)×768(2) (XGA)
    Pixel Configuration RGBW Rectangle
    Pixel Density 85 PPI
    Aspect Ratio 4:3 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.1485×0.1485 mm (H×V)
    Pixel Pitch 0.297×0.297 mm (H×V)
    Weight 1.00Kgs (Max.)
    Surface Antiglare, Hard coating (3H)
    Active Area 304.128×228.096 mm (H×V)
    Bezel Area 310.18×234.40 mm (H×V)
    Outline Dimension 326.5×253.5 mm (H×V)
    Outline Depth 13.1 (Max.) mm
    Holes & Brackets Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without





    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    G150XTN01.0 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Color 16.2M (6-bit + FRC)
    Color Gamut 60% NTSC (CIE1931)
    Response Time 5.7/2.3 (Typ.)(Tr/Td)
    Viewing Angle 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.25/1.33 (Typ./Max.)(9 points)
    Sunlight Readable N



    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship.

    G150XTN01.0 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No
    Total Power Consumption 6.34W (Typ.)





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    B101EAN02.5 CELL AUO 10.1" 800×1280
    B079XAN02.0 CELL AUO 7.9" 768×1024
    B133XW03 V4 CELL AUO 13.3" 1366×768
    B101EAN02.1 CELL AUO 10.1" 800×1280
    H429AAN01 AUO 4.3" 540×960
    T430HVN02.1 CELL AUO 43" 1920×1080
    T430HVN01.4 CELL AUO 43" 1920×1080
    T550QVN01.2 CELL AUO 55" 3840×2160



    We also have other industrial LCD panels, pls contact to us for the further information

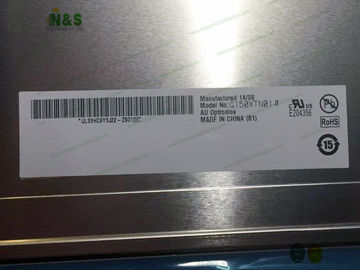

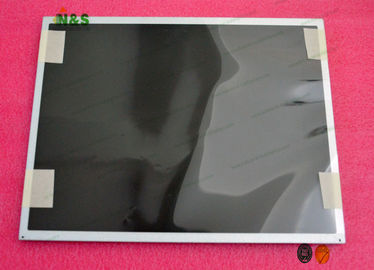

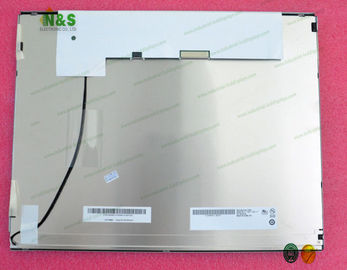

    G150XTN01.0 pictures
