Product Details:
|
| Panel Model: | G150XVN01.1 | Panel Brand: | AUO |
|---|---|---|---|
| Descrition: | 1024×768 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 304.128×228.096 Mm | Outline: | 326.5×253.5 Mm |
| High Light: | auo lcd screen,auo lcd display |
||
New and original G150XVN01.1 AUO a-Si TFT-LCD ,15.0 inch, 1024×768 for Industrial Application
| Panel Model | G150XVN01.1 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 70 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 910g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 9.6 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | MVA, Normally Black, Transmissive |
|---|---|
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 20/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.300; Wy:0.325 |
| White Variation | 1.33 (Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 10.1W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| B116XAN02.0 CELL | AUO | 11.6" | 1366×768 |
| B101UAN02.1 CELL | AUO | 10.1" | 1920×1200 |
| B101EAN01.7 CELL | AUO | 10.1" | 1280×800 |
| B101EAN01.0 CELL | AUO | 10.1" | 1280×800 |
| B116XAN02.5 CELL | AUO | 11.6" | 1366×768 |
| T550HVN05.0 CELL | AUO | 55" | 1920×1080 |
| T650QVN01.0 CELL | AUO | 65" | 3840×2160 |
| A018AN03 V2 | AUO | 1.8" | 280×220 |
We also have other industrial LCD panels, pls contact to us for the further information

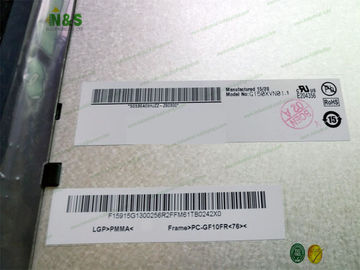

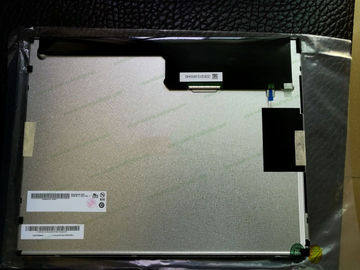

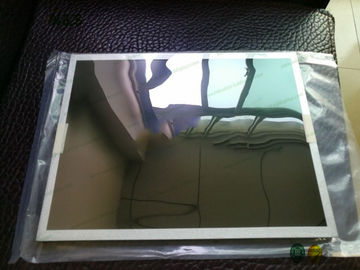

G150XVN01.1 pictures
