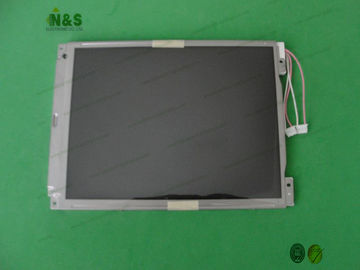

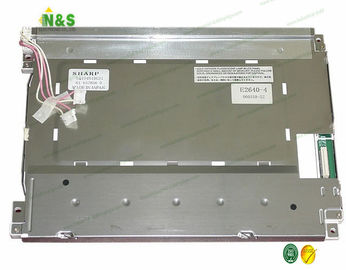

LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging

LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging

    • LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
    • LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
    • LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
  • LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging

    Product Details:

    Place of Origin: Japan
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LQ104S1DG21

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LQ104S1DG21 Panel Brand: SHARP
    Descrition: 800×600 Panel Type: A-Si TFT-LCD
    Active Area: 211.2×158.4 Mm Outline: 246.5×179.4 Mm

    LQ104S1DG21 SHARP a-Si TFT-LCD ,10.4 inch, 800×600 for Medical Imaging



    LQ104S1DG21 Basic Information

    Panel Model LQ104S1DG21
    Panel Brand SHARP
    Descrition a-Si TFT-LCD ,10.4 inch, 800×600
    Panel Type a-Si TFT-LCD
    Operating Temperature -10 ~ 65 °C
    Storage Temperature -30 ~ 70 °C
    Remarks LAST SHIP DATE:8 July 2011





    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    LQ104S1DG21 Mechanical Features

    Dot Resolution 800(RGB)×600 (SVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 96 PPI
    Aspect Ratio 4:3 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.088×0.264 mm (H×V)
    Pixel Pitch 0.264×0.264 mm (H×V)
    Weight 620g (Max.)
    Surface Antiglare, Hard coating (3H), Antireflection
    Active Area 211.2×158.4 mm (H×V)
    Bezel Area 214.6×162.4 mm (H×V)
    Outline Dimension 246.5×179.4 mm (H×V)
    Outline Depth 15.5 (Max.) mm
    Holes & Brackets Face mounting holes (2-Φ3.4, 2-3.4×4.4)
    Landscape or Portrait Landscape type
    Touch Panel Without



    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    Shipment:

    LQ104S1DG21 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 10/25 (Typ.)(Tr/Td)
    Viewing Angle 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.45 (Max.)(5 points)
    Sunlight Readable N



    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship

    LQ104S1DG21 Electronics Feature

    Reverse Scan Yes (U/D, L/R)
    Total Power Consumption 6.5W



    Below are our other LCD panels stock for your easy reference:



    Panel Model Brand Size Resolution
    LM019LC1S17 SHARP 1.9" 128×160
    LM014LC1S02 SHARP 1.4" 96×108
    LM64P89N SHARP 10.4" 640×480
    LM084SS1T01 SHARP 8.4" 800×600
    LM64P83 SHARP 9.4" 640×480
    LM12S029 SHARP 12.1" 800×600
    LM12S389 SHARP 12.1" 800×600
    LM094YS1T64 SHARP 9.4" 800×480



    We also have other industrial LCD panels, pls contact to us for the further information

    .
