G260J1-L05 CHIMEI Innolux Touch Screen A-Si TFT-LCD 25.5 Inch Size 1920×1200

G260J1-L05 CHIMEI Innolux Touch Screen A-Si TFT-LCD 25.5 Inch Size 1920×1200

G260J1-L05 CHIMEI Innolux Touch Screen A-Si TFT-LCD 25.5 Inch Size 1920×1200

Product Details:

Place of Origin: Japan
Brand Name: CHIMEI INNOLUX
Certification: ISO9001
Model Number: G260J1-L05

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now
Detailed Product Description
Panel Model: G260J1-L05 Panel Brand: CHIMEI INNOLUX
Descrition: 1920×1200 Panel Type: A-Si TFT-LCD
Active Area: 550.08×343.8 Mm Outline: 582×375.6 Mm

New and original G260J1-L05 CHIMEI INNOLUX a-Si TFT-LCD ,25.5 inch, 1920×1200 for Industrial Application

G260J1-L05 Basic Information

Panel Model G260J1-L05
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,25.5 inch, 1920×1200
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks TCO’03 compliance



Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

G260J1-L05 Mechanical Features

Dot Resolution 1920(RGB)×1200 (WUXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 88 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0955×0.2865 mm (H×V)
Pixel Pitch 0.2865×0.2865 mm (H×V)
Weight 3.45Kgs (Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 550.08×343.8 mm (H×V)
Bezel Area 554.1×347.8 mm (H×V)
Outline Dimension 582×375.6 mm (H×V)
Outline Depth 41.5±0.5 mm
Landscape or Portrait Landscape type
Touch Panel Without



Quality Control:

1Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

2Function Inspection

Make sure all functions are 100% tested ok

G260J1-L05 Optical Features

Display Mode Super MVA, Normally Black, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1500 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 92% NTSC (CIE1931)
Response Time 15/5 (Typ.)(Tr/Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.40/1.50 (Typ./Max.)(13 points)
Sunlight Readable N



Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.

G260J1-L05 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M280HKJ-P02 Innolux 28.0" 1920×1080
PG047IC-01B Innolux 4.7" 720×1280
PP037IC-01B Innolux 3.7" 480×800
V650DK1-QS2 Innolux 65" 3840×2160
MT190AW02 V.W CELL Innolux 19.0" 1440×900
V580HJ1-PD6 Innolux 58" 1920×1080
C02706-01Z Innolux 2.7" 320×240
V650HP1-PS1 Innolux 65" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information

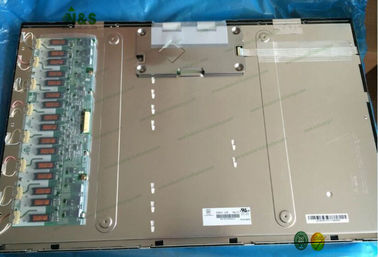

G260J1-L05pictures
