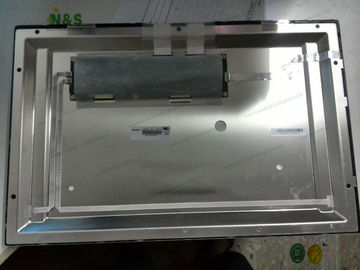

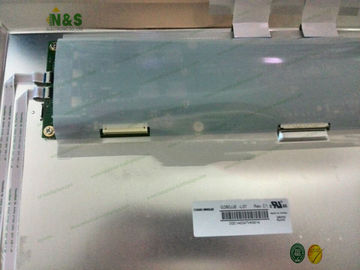

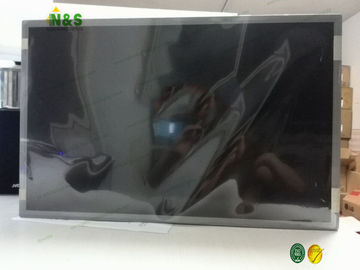

25.5 Inch Innolux LCD Panel G260JJE-L07 CHIMEI A-Si TFT-LCD 1920×1200 For Medical Imaging

25.5 Inch Innolux LCD Panel G260JJE-L07 CHIMEI A-Si TFT-LCD 1920×1200 For Medical Imaging

    • 25.5 Inch Innolux LCD Panel G260JJE-L07 CHIMEI A-Si TFT-LCD 1920×1200 For Medical Imaging
    • 25.5 Inch Innolux LCD Panel G260JJE-L07 CHIMEI A-Si TFT-LCD 1920×1200 For Medical Imaging
    • 25.5 Inch Innolux LCD Panel G260JJE-L07 CHIMEI A-Si TFT-LCD 1920×1200 For Medical Imaging
  • 25.5 Inch Innolux LCD Panel G260JJE-L07 CHIMEI A-Si TFT-LCD 1920×1200 For Medical Imaging

    Product Details:

    Place of Origin: KOREA
    Brand Name: CHIMEI INNOLUX
    Certification: ISO9001
    Model Number: G260JJE-L07

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G260JJE-L07 Panel Brand: CHIMEI INNOLUX
    Descrition: 1920×1200 Panel Type: A-Si TFT-LCD
    Active Area: 550.08×343.8 Mm Outline: 582×375.6×30.6 Mm

    G260JJE-L07 CHIMEI INNOLUX a-Si TFT-LCD ,25.5 inch, 1920×1200 for Medical Imaging



    G260JJE-L07 Basic Information

    Panel Model G260JJE-L07
    Panel Brand CHIMEI INNOLUX
    Descrition a-Si TFT-LCD ,25.5 inch, 1920×1200
    Panel Type a-Si TFT-LCD
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    G260JJE-L07 Mechanical Features



    Dot Resolution 1920(RGB)×1200 (WUXGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 88 PPI
    Aspect Ratio 16:10 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0955×0.2865 mm (H×V)
    Pixel Pitch 0.2865×0.2865 mm (H×V)
    Weight 3.65/3.85Kgs (Typ./Max.)
    Surface Antiglare, Hard coating (3H)
    Active Area 550.08×343.8 mm (H×V)
    Bezel Area 554.1×347.8 mm (H×V)
    Outline Dimension 582×375.6 mm (H×V)
    Outline Depth 30.1±0.5 mm
    Landscape or Portrait Landscape type
    Touch Panel Without



    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    G260JJE-L07 Optical Features

    Display Mode Super MVA, Normally Black, Transmissive
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 1500 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (8-bit)
    Color Gamut 72% NTSC (CIE1931)
    Response Time 15/5 (Typ.)(Tr/Td)
    Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.40/1.50 (Typ./Max.)(13 points)
    Sunlight Readable N



    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    G260JJE-L07 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No



    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    HB070NA-02B Innolux 7.0" 800×480
    V500HJ3-PE1 Innolux 50" 1920×1080
    N133FGE-P31 Innolux 13.3" 1600×900
    N116HSE-DJ1 Innolux 11.6" 1920×1080
    V236BJ1-P01 Rev.C3 Innolux 23.6" 1366×768
    F02424-07U Innolux 2.4" 320×240
    V236BJ1-PE2 Innolux 23.6" 1366×768
    V390HN1-P02 Innolux 39" 1920×1080
