15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application

15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application
15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application 15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application 15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application

Large Image :  15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application

Product Details:
Place of Origin: Japan
Brand Name: Innolux
Certification: ISO9001
Model Number: G150X1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application

Description
Panel Model: G150X1-L01 Panel Brand: CMO
Descrition: 1024×768 Panel Type: A-Si TFT-LCD
Active Area: 304.128×228.096 Mm Outline: 326.5×253.5×14.35 Mm
High Light:

lcd display panel

,

innolux lcd screen

New and original G150X1-L01 Innolux a-Si TFT-LCD ,15.0 inch, 1024×768 for Industrial Application



G150X1-L01 Basic Information

Panel Model G150X1-L01
Panel Brand CMO
Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 70 °C
Storage Temperature -40 ~ 80 °C
Remarks PSWG Compatible





Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day



G150X1-L01 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 85 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.099×0.297 mm (H×V)
Pixel Pitch 0.297×0.297 mm (H×V)
Weight 1.10Kgs (Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 304.128×228.096 mm (H×V)
Bezel Area 307.4×231.3 mm (H×V)
Outline Dimension 326.5×253.5 mm (H×V)
Outline Depth 13.85±0.5 mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok

G150X1-L01 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 16.2M (6-bit + FRC)
Response Time 8/17 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White Variation 1.25/1.40 (Typ./Max.)(9 points)
Sunlight Readable N



Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.



G150X1-L01 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HB101NA-01C Innolux 10.1" 1280×800
BP059IA-01A Innolux 5.9" 720×1280
F01840-01U Innolux 1.8" 128×160
F02812-01U Innolux 2.8" 240×320
F05502-02U Innolux 5.5" 480×854
F050A10-603 Innolux 5.0" 540×960
Q30055A101 Innolux 3.0" 240×400
F03213-01U Innolux 3.2" 240×400



We also have other industrial LCD panels, pls contact to us for the further information

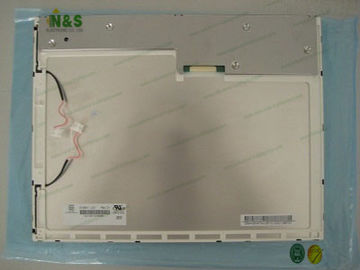

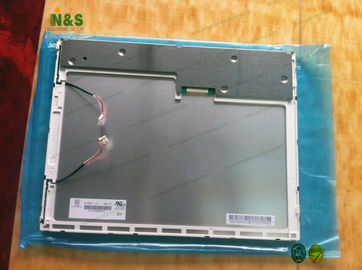

G150X1-L01  pictures



15.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application 015.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application 115.0 Inch Innolux LCD Panel G150X1-L01 A-Si TFT-LCD 15.0 Inch 1024×768 Industrial Application 2
