G150XTN03.0 AUO LCD Panel A-Si TFT-LCD 15.0 Inch 1024×768 For Medical Imaging

G150XTN03.0 AUO LCD Panel A-Si TFT-LCD 15.0 Inch 1024×768 For Medical Imaging
G150XTN03.0 AUO LCD Panel A-Si TFT-LCD 15.0 Inch 1024×768 For Medical Imaging

Large Image :  G150XTN03.0 AUO LCD Panel A-Si TFT-LCD 15.0 Inch 1024×768 For Medical Imaging

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G150XTN03.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

G150XTN03.0 AUO LCD Panel A-Si TFT-LCD 15.0 Inch 1024×768 For Medical Imaging

Description
Panel Model: G150XTN03.0 Panel Brand: AUO
Descrition: 1024×768 Panel Type: A-Si TFT-LCD
Active Area: 304.128×228.096 Mm Outline: 326.5×253.5×12 Mm
High Light:

auo display panel

,

auo lcd display

G150XTN03.0 AUO a-Si TFT-LCD ,15.0 inch, 1024×768 for Medical Imaging


G150XTN03.0 Basic Information

Panel Model G150XTN03.0
Panel Brand AUO
Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 65 °C
Storage Temperature -20 ~ 65 °C



Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

G150XTN03.0 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 85 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.099×0.297 mm (H×V)
Pixel Pitch 0.297×0.297 mm (H×V)
Weight 1.20Kgs (Max.)
Surface Antiglare, Hard coating (3H)
Active Area 304.128×228.096 mm (H×V)
Bezel Area 313.55×237.25 mm (H×V)
Outline Dimension 326.5×253.5 mm (H×V)
Outline Depth 12.0 (Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

G150XTN03.0 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut 60% NTSC (CIE1931)
Response Time 5.7/2.3 (Typ.)(Tr/Td)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable N



Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

G150XTN03.0 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 10.9W (Typ.)


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M270DAN01.0 CELL AUO 27.0" 2560×1440
H644DAN01.1 AUO 6.5" 1080×1920
B140RTN02.0 CELL AUO 14.0" 1600×900
B156HW03 V0 CELL AUO 15.6" 1920×1080
B133HAN02.1 CELL AUO 13.3" 1920×1080
B133XW01 V4 CELL AUO 13.3" 1366×768
B116HAN03.1 CELL AUO 11.6" 1920×1080
B116HAN03.0 CELL AUO 11.6" 1920×1080


We also have other industrial LCD panels, pls contact to us for the further information

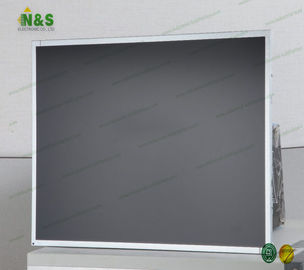

G150XTN03.0pictures
