New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application

New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application
New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application

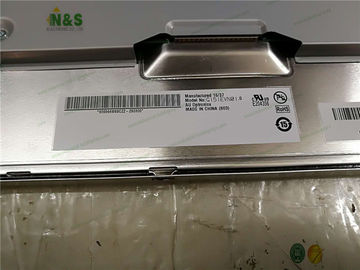

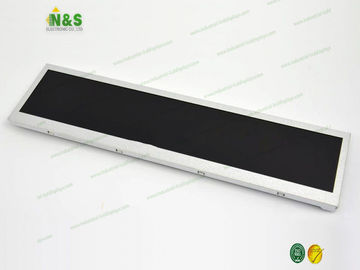

Large Image :  New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G151EVN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

New / Original AUO LCD Panel G151EVN01.0 15.1 Inch 1280×248 Industrial Application

Description
Panel Model: G151EVN01.0 Panel Brand: AUO
Descrition: 1280×248 Panel Type: A-Si TFT-LCD
Active Area: 376.32×72.91 Mm Outline: 396×100.8 Mm
High Light:

auo display panel

,

auo lcd display

New and original G151EVN01.0 AUO a-Si TFT-LCD ,15.1 inch, 1280×248 for Industrial Application



G151EVN01.0 Basic Information

Panel Model G151EVN01.0
Panel Brand AUO
Descrition a-Si TFT-LCD ,15.1 inch, 1280×248
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks 1/4 Cut of 19"



Packaging & Delivery

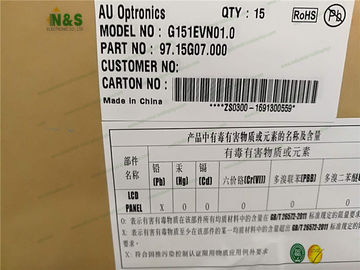

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

G151EVN01.0 Mechanical Features

Dot Resolution 1280(RGB)×248
Pixel Configuration RGB Vertical Stripe
Pixel Density 86 PPI
Aspect Ratio >3:1 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.098×0.294 mm (H×V)
Pixel Pitch 0.294×0.294 mm (H×V)
Weight 700g (Max.)
Surface Antiglare, Hard coating (3H)
Active Area 376.32×72.91 mm (H×V)
Bezel Area 380.32×75.9 mm (H×V)
Outline Dimension 396×100.8 mm (H×V)
Outline Depth 17.3 mm
Holes & Brackets Side mounting holes
Landscape or Portrait Landscape type
Touch Panel Without



(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.

G151EVN01.0 Optical Features

Display Mode MVA, Normally Black, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 2000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 70% NTSC (CIE1931)
Response Time 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable N



The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

G151EVN01.0 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 10.85W (Typ.)



Below are our other LCD panels stock for your easy reference:



Panel Model Brand Size Resolution
A060SE02 V5 AUO 6.0" 800×600
A060SE02 V3 AUO 6.0" 800×600
A060SE02 V2 AUO 6.0" 800×600
A060SE02 V1 AUO 6.0" 800×600
A090XE01 V6 AUO 9.0" 1024×768
A090XE01 V5 AUO 9.0" 1024×768
A043SE01 V3 AUO 4.3" 600×800
H283QN00 V6 AUO 2.8" 240×320



We also have other industrial LCD panels, pls contact to us for the further information
