Product Details:
|
| Panel Model: | TX20D18VM2BPA | Panel Brand: | HITACHI |
|---|---|---|---|
| Descrition: | 800×480 | Panel Type: | LTPS TFT-LCD |
| Active Area: | 174×104.4 Mm | Outline: | 189×120×12.3 Mm |
| High Light: | medical lcd screen,medical grade display |
||
New and original TX20D18VM2BPA HITACHI LTPS TFT-LCD ,8.0 inch, 800×480 for Medical Imaging
| Panel Model | TX20D18VM2BPA |
|---|---|
| Panel Brand | HITACHI |
| Descrition | LTPS TFT-LCD ,8.0 inch, 800×480 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 800(RGB)×480 (WVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 116 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2175 mm (H×V) |
| Pixel Pitch | 0.2175×0.2175 mm (H×V) |
| Weight | 300g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 174×104.4 mm (H×V) |
| Bezel Area | 179.6×110 mm (H×V) |
| Outline Dimension | 189×120 mm (H×V) |
| Outline Depth | 12.3 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 280 cd/m² (Typ.) |
| Contrast Ratio | 200 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.310 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LMG6382QHFR | KOE | 4.8" | 256×64 |
| LMG6380QHGR | KOE | 4.8" | 256×64 |
| LMG6381QHGE | KOE | 4.8" | 256×64 |
| LMG7422PLFF | KOE | 5.1" | 240×128 |
| LMG7421PLBC | KOE | 5.1" | 240×128 |
| LMG7412PLFF | KOE | 5.1" | 240×128 |
| LMG7402PLFF | KOE | 5.1" | 240×128 |
| LMG7401PLBC | KOE | 5.1" | 240×128 |
We also have other industrial LCD panels, pls contact to us for the further information

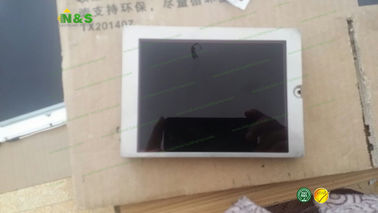

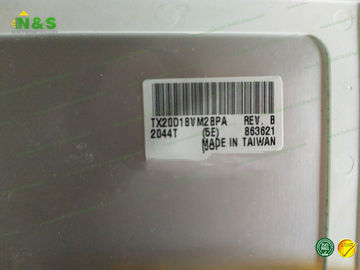

TX20D18VM2BPA Pictures
