Product Details:
|
| Panel Model: | TX16D11VM2CAA | Panel Brand: | HITACHI |
|---|---|---|---|
| Descrition: | 640×240 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 148.8×53.76 Mm | Outline: | 173×70 Mm |
| High Light: | medical lcd panel,medical grade display |
||
TX16D11VM2CAA HITACHI a-Si TFT-LCD ,6.2 inch, 640×240 for Industrial Application
| Panel Model | TX16D11VM2CAA |
|---|---|
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,6.2 inch, 640×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | HVGA/VGA mode slectable |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 640(RGB)×240 (HVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 109 PPI |
| Aspect Ratio | 8:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0775×0.224 mm (H×V) |
| Pixel Pitch | 0.2325×0.224 mm (H×V) |
| Weight | 140g (Typ.) |
| Surface | Antiglare |
| Active Area | 148.8×53.76 mm (H×V) |
| Bezel Area | 152.8×57.76 mm (H×V) |
| Outline Dimension | 173×70 mm (H×V) |
| Outline Depth | 8.6 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 280 cd/m² (Typ.) |
| Contrast Ratio | 200 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 45 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.290; Wy:0.310 |
| Sunlight Readable | N |
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LNG9980ZWCC | KOE | 12.1" | 800×600 |
| LM9910ZWCC | KOE | 11.3" | 800×600 |
| LM9900ZWCC-01 | KOE | 11.3" | 800×600 |
| SX39X001 | KOE | 15.5" | 1024×768 |
| SX31S001 | KOE | 12.1" | 800×600 |
| SP17Q01L6ALZZ | KOE | 6.4" | 320×240 |
| SP17Q001 | KOE | 6.4" | 320×240 |
| SP14Q009 | KOE | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

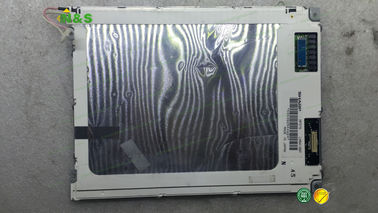

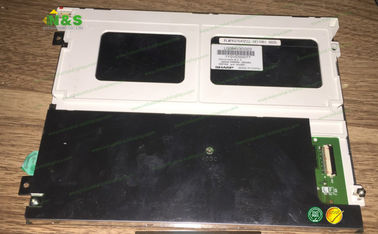

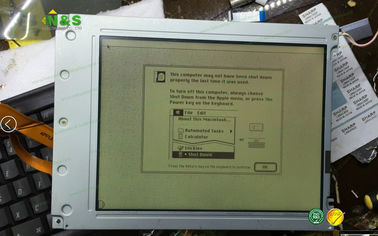

TX16D11VM2CAA pictures
