Product Details:
|
| Panel Model: | T-51756D121J-FW-A-ACN | Panel Brand: | OPTREX |
|---|---|---|---|
| Descrition: | 1024×768 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 245.76×184.32 Mm | Outline: | 280×210×12.5 Mm |
| High Light: | medical lcd screen,medical grade display |
||
New and original T-51756D121J-FW-A-ACN OPTREX a-Si TFT-LCD ,12.1 inch, 1024×768 for Medical Imaging
| Panel Model | T-51756D121J-FW-A-ACN |
|---|---|
| Panel Brand | OPTREX |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | AA121XH03 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Remarks | NCM |
Packing & Delivery for our LCD Screen Panel Replacements:
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 720g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 7.5W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| DMF6104NB-FW | Kyocera | 5.3" | 256×128 |
| DMF5001NYL-ACE | Kyocera | 4.7" | 160×128 |
| KHS057QV1AJ-G81 | Kyocera | 5.7" | 320×240 |
| DMF5002NY-EB | Kyocera | 3.6" | 128×112 |
| KCG057QV1EA-G030 | Kyocera | 5.7" | 320×240 |
| KHB065HV1BD-M10 | Kyocera | 6.5" | 640×240 |
| F-55157GNF-FW-AQN | Kyocera | 5.7" | 320×240 |
| F-55471GNFQJ-LG-AFN | Kyocera | 5.2" | 240×64 |
We also have other industrial LCD panels, pls contact to us for the further information

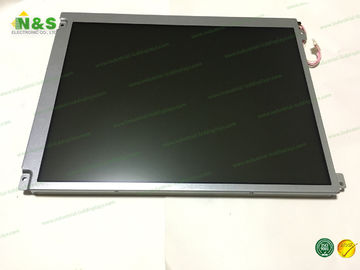

T-51756D121J-FW-A-ACN pictures
