60Hz 10.4 Inch Medical Grade Lcd Monitors Replacement TCG104VG2AA-G00 Kyocera A-Si TFT-LCD

60Hz 10.4 Inch Medical Grade Lcd Monitors Replacement TCG104VG2AA-G00 Kyocera A-Si TFT-LCD
60Hz 10.4 Inch Medical Grade Lcd Monitors Replacement TCG104VG2AA-G00 Kyocera A-Si TFT-LCD 60Hz 10.4 Inch Medical Grade Lcd Monitors Replacement TCG104VG2AA-G00 Kyocera A-Si TFT-LCD

Large Image :  60Hz 10.4 Inch Medical Grade Lcd Monitors Replacement TCG104VG2AA-G00 Kyocera A-Si TFT-LCD

Product Details:
Place of Origin: Japan
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG104VG2AA-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

60Hz 10.4 Inch Medical Grade Lcd Monitors Replacement TCG104VG2AA-G00 Kyocera A-Si TFT-LCD

Description
Panel Model: TCG104VG2AA-G00 Panel Brand: Kyocera
Descrition: 640×480 Panel Type: A-Si TFT-LCD
Active Area: 211.2×158.4 Mm Outline: 243×185.1×11 Mm
High Light:

medical lcd screen

,

medical lcd panel



TCG104VG2AA-G00 Kyocera a-Si TFT-LCD ,10.4 inch, 640×480 for 60Hz





TCG104VG2AA-G00 Basic Information

Panel Model TCG104VG2AA-G00
Panel Brand Kyocera
Descrition a-Si TFT-LCD ,10.4 inch, 640×480
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 70 °C
Storage Temperature -20 ~ 80 °C
Remarks Recommended Inverter: CXA-0308 (TDK)





Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

TCG104VG2AA-G00 Mechanical Features

Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 76 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.110×0.330 mm (H×V)
Pixel Pitch 0.330×0.330 mm (H×V)
Weight 520g
Surface Glare (Haze 0%)
Active Area 211.2×158.4 mm (H×V)
Bezel Area 213.2×160.4 mm (H×V)
Outline Dimension 243×185.1 mm (H×V)
Outline Depth 10.5±0.5 mm
Holes & Brackets Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without





Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

TCG104VG2AA-G00 Optical Features

Display Mode AWV, Normally Black, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 750 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 14/9 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥5) (L/R/U/D)
Viewing Direction Symmetry
White Variation TBD
Sunlight Readable N





Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

TCG104VG2AA-G00 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (180°)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
KS3224ASTT-FW-X9 Kyocera 5.7" 320×240
KS3224ASTT-FW-X8 Kyocera 5.7" 320×240
KS3224ASTT-FW-X3 Kyocera 5.7" 320×240
KS3224ASTT-FW-X2 Kyocera 5.7" 320×240
KS3224ASTT-FW-X1 Kyocera 5.7" 320×240
KG057QV1CA-G040W Kyocera 5.7" 320×240
KG057QV1CA-G040 Kyocera 5.7" 320×240
KCS057QV1BL-G21 Kyocera 5.7" 320×240



We also have other industrial LCD panels, pls contact to us for the further information

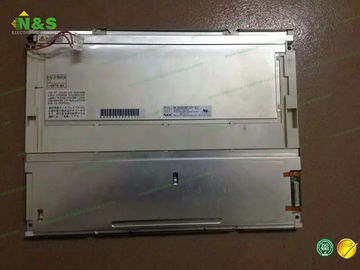

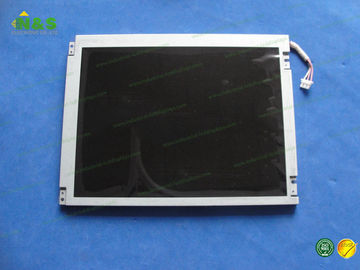

TCG104VG2AA-G00   pictures
