Product Details:
|
| Panel Model: | LTBSHT702G21CKS | Panel Brand: | NAN YA |
|---|---|---|---|
| Descrition: | 640×480 | Panel Type: | FSTN-LCD |
| Active Area: | 191.97×143.97 Mm | Outline: | 260.5×174×8 Mm |
| High Light: | medical lcd screen,medical grade display |
||
New and original LTBSHT702G21CKS NAN YA FSTN-LCD ,9.4 inch, 640×480 for 60Hz
| Panel Model | LTBSHT702G21CKS |
|---|---|
| Panel Brand | NAN YA |
| Descrition | FSTN-LCD ,9.4 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Dot Resolution | 640×480 (VGA) |
|---|---|
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 350g |
| Surface | Antiglare |
| Active Area | 191.97×143.97 mm (H×V) |
| Bezel Area | 202.4×151.2 mm (H×V) |
| Outline Dimension | 260.5×174 mm (H×V) |
| Outline Depth | 7.3/8.0 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | STN, Black/White (Negative), Transmissive |
|---|---|
| Brightness | 70 cd/m² (Typ.) |
| Contrast Ratio | 20 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 300/200 (Typ.)(Tr/Td) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 70Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LCBKET302M2C | NAN YA | 7.5" | 640×480 |
| LCBHBT161M | NAN YA | 5.7" | 320×240 |
| LCBLDT163M14C | NAN YA | 7.4" | 640×480 |
| LCBLDT163M2S | NAN YA | 7.4" | 640×480 |
| LCBLDT163MC | NAN YA | 7.4" | 640×480 |
| LKCEAZ740YKS | NAN YA | 5.7" | 320×240 |
| LTBSHT702G21CKS | NAN YA | 9.4" | 640×480 |
| LMCJ6S003J17CDP | NAN YA | 5.2" | 240×64 |
We also have other industrial LCD panels, pls contact to us for the further information

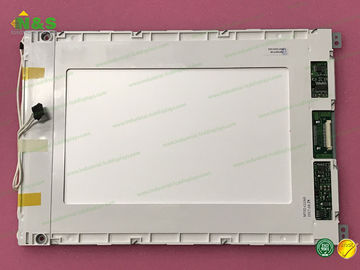

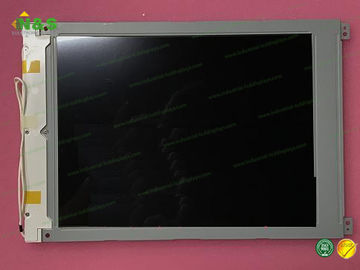

LTBSHT702G21CKS pictures
