Product Details:
|
| Panel Model: | KCG057QV1DB-G760 | Panel Brand: | Kyocera |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | CSTN-LCD |
| Active Area: | 115.18×86.38 Mm | Outline: | 144×104.8×13.2 Mm |
| High Light: | medical lcd panel,medical grade display |
||
KCG057QV1DB-G760 Kyocera CSTN-LCD ,5.7 inch, 320×240 60Hz
| Panel Model | KCG057QV1DB-G760 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,5.7 inch, 320×240 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Alternative to KCG057QV1DB-G770 |

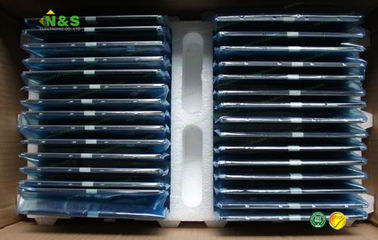

Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 175g |
| Surface | Glare (Haze 0%) |
| Active Area | 115.18×86.38 mm (H×V) |
| Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 9.0/13.2 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting poles (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
| Display Mode | STN, Normally Black, Transmissive |
|---|---|
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 40 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 250/200 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/50/70 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.310 |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Vertical Frequency | 75Hz |
|---|---|
| Reverse Scan | No |
| Driving Method | Duty: 1/240 |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| KCG057QV1DB-G56 | Kyocera | 5.7" | 320×240 |
| KCB104VG2CG-G20 | Kyocera | 10.4" | 640×480 |
| KS3224ASTT-FW-X13 | Kyocera | 5.7" | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7" | 320×240 |
| KCS6448BSTT-X1 | Kyocera | 10.4" | 640×480 |
| KCS6448BSTT-X4 | Kyocera | 10.4" | 640×480 |
| KCS6448BSTT-X12 | Kyocera | 10.4" | 640×480 |
| KCS6448BSTT-X2 | Kyocera | 10.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information

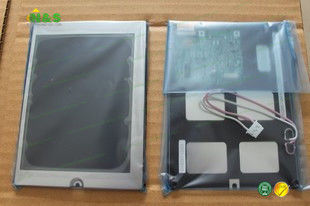

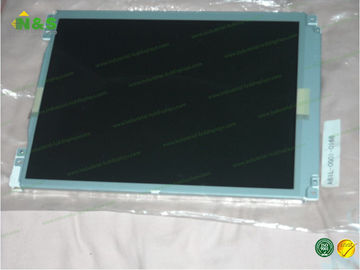

KCG057QV1DB-G760 pictures
