Product Details:
|
| Brand: | NLT | Diagonal Size: | 19.0 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×1024 [SXGA] | Active Area: | 376.32(H)×301.056(V) Mm |
| View Direction: | Symmetry | Frame Rate: | 60Hz |
| Power Supply: | 5.0V (Typ.) | Touch Panel: | Without |
| High Light: | nec lcd touch screen,nec tft lcd |
||

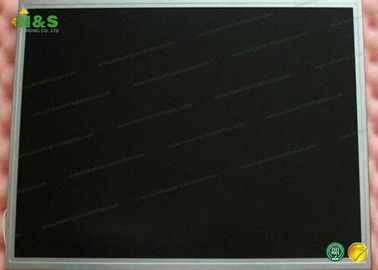

Normally Black NL128102AC29-17G 19 inch Active Area 376.32(H)×301.056(V) mm for 60HZ a-Si TFT-LCD
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.32(H) × 305.06(V) |
| Outline Dim.(mm) | 396(H) × 324(V) | Depth(mm) | 18.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle Display | Outline Shape | - |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.10/2.31Kgs (Typ./Max.) | Treatment | Clear |
| Basic Information : | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | UA-SFT, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.315 | Display Colors | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) | White Uniformity | 1.10/1.25 (Typ./Max.)(5 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF3Z-10P-2H | 1 pcs | 10 pins | 2.0 mm | ||
| JAE | IL-Z-9PL-SMTYE | 1 pcs | 9 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 3.46/4.02A (Typ./Max.) | ||
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
We also have other industrial LCD panels, pls contact to us for the further information
