Product Details:
|
| Manufacturer: | AUO | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Good View At: | 6 O'clock | Color Depth: | 262K 45% |
| Mass: | 270g (Max.) | Refresh Rate: | 60Hz |
| Voltage Supply: | 3.3V (Typ.) | Touchscreen: | Without |
| High Light: | auo display panel,auo lcd display |
||

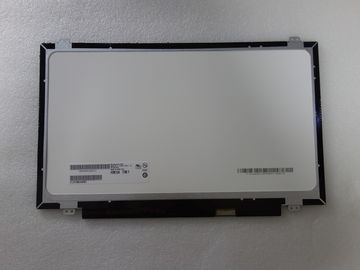

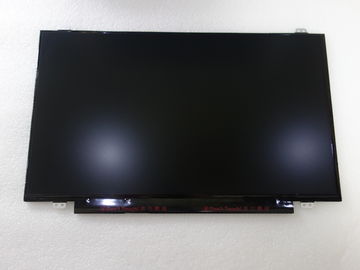

Normally White G140XTN01.0 AUO 14 inch LCM 1366×768 for Industrial Application
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.0755×0.2265 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2265×0.2265 mm (H×V) | |
| Mechanical Size : | Display Area | 309.399×173.952 mm (H×V) | Bezel Area | - |
| Outline Dim. | 320.4×205.1 mm (H×V) | Outline Depth | 2.8/3.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle Display | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) | |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Features : | Weight | 270g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 8 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) | Uniformity | 1.25/1.60 (Max.)(5/13 points) |
| Signal Systerm : | eDP (1 Lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 333/364mA (Typ./Max.) | ||
| Consumption | 1.2/1.5W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-02 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-020A | |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information
