Product Details:
|
| Active Area: | 154.08×86.58 Mm | Outline: | 164.9×100 Mm |
|---|---|---|---|
| Surface: | Antiglare (Haze 5.5%) | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | auo lcd screen,auo lcd display |
||

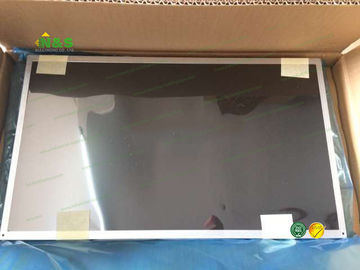

Normally White G185XW01 V201 AUO 18.5 inch LCM 1366×768 Brightness 450
| Screen Size : | 18.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 409.8×230.4 mm | 413.4×234.0 mm | 430.4×254.7 mm | 10.6 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle Display | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.44Kgs (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 85/85/80/80 (Typ.)(CR≥10) | 3.5/1.5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Gamut | Support Color | Color Coordinate |
| 70% NTSC (CIE1931) | 16.7M (6-bit + Hi-FRC) | Wx:0.313; Wy:0.329 | |
| White Uniformity : | 1.43/1.54 (Typ./Max.)(9 points) | ||
| Datasheet Referenced : | File Number | Version | Language | Issue Date |
|---|---|---|---|---|
| - | Pre Ver0.0 | English | 2017 - 10 - 11 | |
| Panelook Latest Update : | 2018-01-23 10:35 | |||
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information
