Product Details:
|
| Panel Model: | LM270WF5-SLN2 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 1920×1080 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 597.888×336.312 Mm | Outline: | 630×368.2×12.2 Mm |
| High Light: | auo display panel,auo lcd display |
||
LM270WF5-SLN2 LG Display a-Si TFT-LCD ,27.0 inch, 1920×1080 for 60Hz
| Panel Model | LM270WF5-SLN2 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,27.0 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LM270WF5 (SL)(N2) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 81 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1038×0.3114 mm (H×V) |
| Pixel Pitch | 0.3114×0.3114 mm (H×V) |
| Weight | 3.15/3.31Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 597.888×336.312 mm (H×V) |
| Bezel Area | 602.0×340.4 mm (H×V) |
| Outline Dimension | 630×368.2 mm (H×V) |
| Outline Depth | 8.7/12.2 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 19.7W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
| LH300WQ5-SH02 | LG Display | 3.0" | 240×400 |
| LH176J03-SH03 | LG Display | 1.8" | 220×176 |
| LH300WQ2-SH16 | LG Display | 3.0" | 240×400 |
| LH570WX2-SH01 | LG Display | 5.7" | 720×1280 |
| LC320DXY-SGA1 | LG Display | 31.5" | 1366×768 |
| LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information

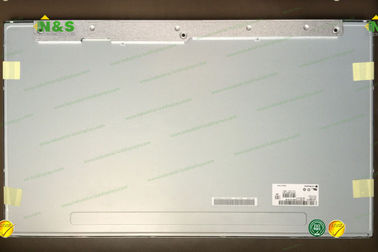

LM270WF5-SLN2 pictures
