Product Details:
|
| Panel Model: | LB190E02-SL01 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 1280×1024 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 376.32×301.056 Mm | Outline: | 396×324×13.7 Mm |
| High Light: | auo display panel,auo lcd screen |
||
LB190E02-SL01 LG Display a-Si TFT-LCD ,19.0 inch, 1280×1024 for 60Hz
| Panel Model | LB190E02-SL01 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LB190E02 (SL)(01) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 1.25Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 376.32×301.056 mm (H×V) |
| Bezel Area | 380.3×305.0 mm (H×V) |
| Outline Dimension | 396×324 mm (H×V) |
| Outline Depth | 13.7 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 70% NTSC (CIE1931) |
| Response Time | 7/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.314; Wy:0.338 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 14.52W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
| LH300Q02-SD01 | LG Display | 3.0" | 240×320 |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information

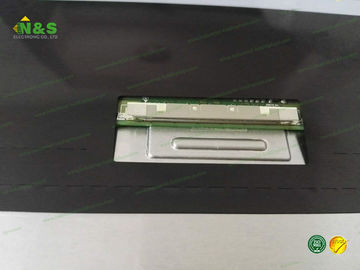

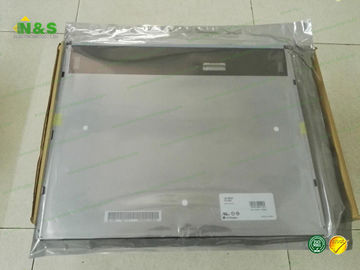

LB190E02-SL01 pictures
