Product Details:
|
| Panel Size: | 9 Inch | View Direction: | 6 O'clock |
|---|---|---|---|
| Frame Rate: | 60Hz | Type: | A-Si TFT-LCD, LCM |
| Touch Panel: | Without | Configuration: | RGB Vertical Stripe |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

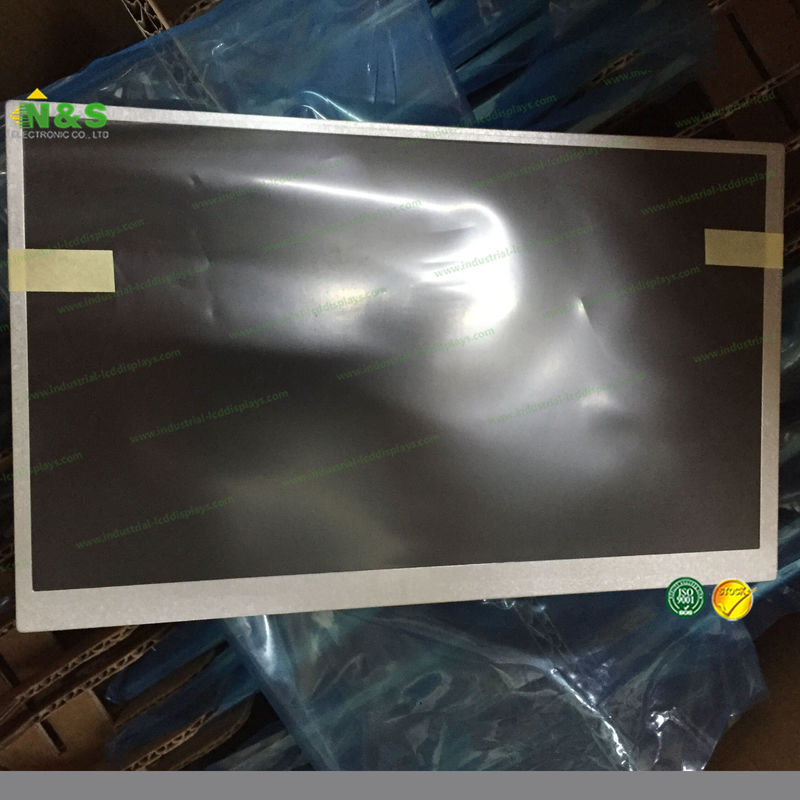

SHARP LQ090Y3DG01 9 inch LCM 800×480 Normally White for Industrial Application
LQ090Y3DG01 Information
| Panel Model | LQ090Y3DG01 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,9.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 198×111.696 mm |
| Outline | 211.1×128.4 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Embedded (LED Driver) |
| Signal Interface | Parallel RGB (1 ch, 8-bit) |
| Panel Model | LQ090Y3DG01 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,9.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Value IA |
| Panel Model | LQ090Y3DG01 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,9.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Value IA |
Packaging & Delivery
Delivery Lead Time :2~3 weeks
Minimum Order :1 pcs LCD Panel
Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Primary Competitive Advantages:
Brand-name Parts
Country of Origin
Guarantee/Warranty
International Approvals
Packaging
Price
Product Features
Product Performance
Quality Approvals
Reputation
Service
Small Orders Accepted
CPT CLAA080MA01CW Signal Interface
Signal Category :TTL
Signal Class : TTL (1 ch, 6-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 150/200mA (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Type : Connector
Signal Interface : Brand:Conn-Tek
Model:FR03-S40D-2-E3000
Pin Pitch:0.5 mm
Pins:40 pins
Amount:1 pcs
Configuration:DRGB-40P1C6B-040A
