Product Details:
|
| Panel Model: | TMS150XG1-10TB | Panel Size: | 15 Inch |
|---|---|---|---|
| Touch Panel: | Without | Frame Rate: | 60Hz |
| Power Supply: | 3.3V | Type: | A-Si TFT-LCD |
| High Light: | lcd display white screen,lcd panel screen |
||

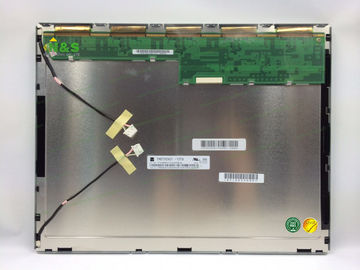

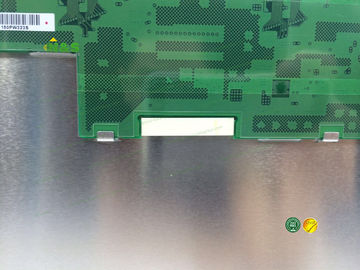

10.4 inch TMS150XG1-10TB TFT Tianma LCD Displays Panel 800×600 for Desktop Monitor
TMS150XG1-10TB Specification
| Panel Model | TMS150XG1-10TB |
|---|---|
| Panel Brand | AVIC |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 326.5×253.5×12 mm |
| Surface | Antiglare |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC) , CIE1931 60% |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.3/12.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up
your case.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
