Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit)

Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit)
Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit) Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit) Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit)

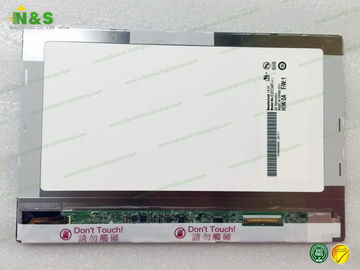

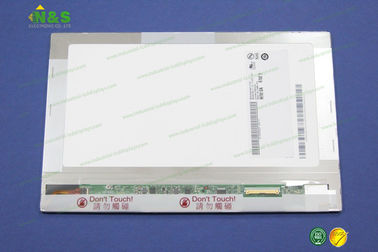

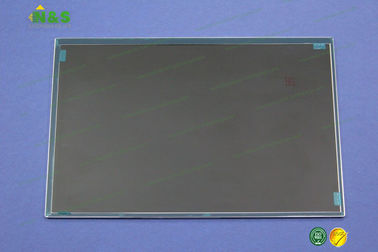

Large Image :  Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit)

Product Details:
Place of Origin: Japan,Korea
Brand Name: AUO
Certification: ISO9001
Model Number: B101EW05 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit)

Description
Panel Model: B101EW05 V1 Active Area: 216.96×135.6 Mm
Resolution: 1280×800 Panel Size: 10.1 Inch
Contrast Ratio: 1300:1 (Typ.) Frequency: 60Hz
High Light:

auo display panel

,

auo lcd display

Normally Black AUO B101EW05 V1 10.1 inch Active Area 216.96×135.6 mm Display Colors 262K (6-bit) , CIE1931 45%


We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.

Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in LCD screen international trade communication.
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
7. 1 Year warranty for our LCD screen replacements.


B101EW05 V1 Basic Information

Panel Model B101EW05 V1
Panel Brand AUO
Descrition a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type a-Si TFT-LCD
Model Alias B101EW05 V.1
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks ECOlor, DCR, Color Management.



B101EW05 V1 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 149 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0565×0.1695 mm (H×V)
Pixel Pitch 0.1695×0.1695 mm (H×V)
Weight 180g (Max.)
Surface Hard coating (3H), Reflection 1.5% (Max.)
Active Area 216.96×135.6 mm (H×V)
Outline Dimension 229.46×149.1 mm (H×V)
Outline Depth 3.35/5.2 (Max.) mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without



B101EW05 V1 Optical Features

Display Mode MVA, Normally Black, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1300 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.50 (Max.)(5/13 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T500QVN03.0 CELL AUO 50" 3840×2160
H497DAN02.1 AUO 5.0" 1080×1920
H546DAN07.3 AUO 5.5" 1080×1920
M270HVN02.3 CELL AUO 27.0" 1920×1080
M270HVN02.2 CELL AUO 27.0" 1920×1080
M270HVN02.1 CELL AUO 27.0" 1920×1080
M270DTN01.0 CELL AUO 27.0" 2560×1440
T320HVN05.7 CELL AUO 31.5" 1920×1080
T320HVN05.4 CELL AUO 31.5" 1920×1080
T215HVN01.2 CELL AUO 21.5" 1920×1080
B070ATN02.0 CELL AUO 7.0" 600×1024
