B101AW02 V0 10.1 inch Industrial AUO LCD Panel for 60Hz Outline 243×146.5×3.6 mm

B101AW02 V0 10.1 inch  Industrial AUO LCD Panel for 60Hz Outline 243×146.5×3.6 mm
B101AW02 V0 10.1 inch  Industrial AUO LCD Panel for 60Hz Outline 243×146.5×3.6 mm B101AW02 V0 10.1 inch  Industrial AUO LCD Panel for 60Hz Outline 243×146.5×3.6 mm

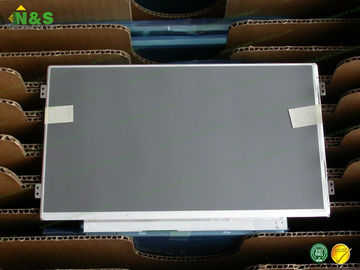

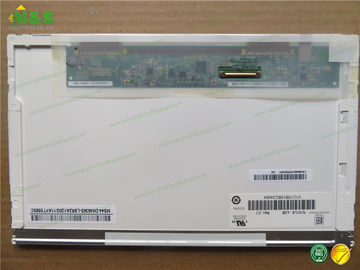

Large Image :  B101AW02 V0 10.1 inch Industrial AUO LCD Panel for 60Hz Outline 243×146.5×3.6 mm

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: B101AW02 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

B101AW02 V0 10.1 inch Industrial AUO LCD Panel for 60Hz Outline 243×146.5×3.6 mm

Description
Panel Model: B101AW02 V0 Surface: Glare (Haze 0%)
Contrast Ratio: 400:1 (Typ.) Display Colors: 262K (6-bit)
Frequency: 60Hz Input Voltage: 3.3V (Typ.)
High Light:

auo lcd screen

,

auo lcd display

B101AW02 V0 10.1 inch Normally White Industrial LCD Display AUO for 60Hz Outline 243×146.5×3.6 mm



B101AW02 V0 Basic Information

Panel Model B101AW02 V0
Panel Brand AUO
Descrition a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type a-Si TFT-LCD
Model Alias B101AW02 V.0
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



B101AW02 V0 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 117 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0725×0.2088 mm (H×V)
Pixel Pitch 0.2175×0.2088 mm (H×V)
Weight 170g (Max.)
Surface Glare (Haze 0%)
Active Area 222.72×125.28 mm (H×V)
Outline Dimension 243×146.5 mm (H×V)
Outline Depth 3.6 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (8 pcs) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without



B101AW02 V0 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 5/11 (Typ.)(Tr/Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.60 (Max.)(5/13 points)
Sunlight Readable N
