Product Details:
|
| Panel Model: | G084SN03 V3 | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Outline: | 203×142.5 Mm | Surface: | Antiglare, Hard Coating (3H) |
| Contrast Ratio: | 600:1 (Typ.) | Frequency: | 60Hz |
| Input Voltage: | 3.3V (Typ.) | ||
| High Light: | auo lcd screen,auo lcd display |
||
New and original G084SN03 V3 8.4 inch Resolution 800×600 TFT LCD Panel Normally White Outline 203×142.5 mm
G084SN03 V3 Basic Information
| Panel Model | G084SN03 V3 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | G084SN03 V.3 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
G084SN03 V3 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | TBD |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.8×131.2 mm (H×V) |
| Outline Dimension | 203×142.5 mm (H×V) |
| Outline Depth | 5.7 (Typ.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
G084SN03 V3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33 (Typ.)(9 points) |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

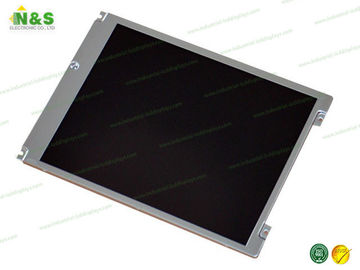

Details Pictures for G084SN03 V3
