Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 6.5 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Outline: | 153×118×11.2 Mm |
| Active Area: | 132.48×99.36 Mm | Contrast Ratio: | 600:1 (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||
New and original G065VN01 V2 6.5 inch lcd display TFT LCD 640×480 Normally White Contrast Ratio 600:1 (Typ.) in stock
G065VN01 V2 Basic Information
| Panel Model | G065VN01 V2 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | G065VN01 V.2 |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | EcoTR |
G065VN01 V2 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 170g (Typ.) |
| Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Active Area | 132.48×99.36 mm (H×V) |
| Bezel Area | 135.9×102.8 mm (H×V) |
| Outline Dimension | 153×118 mm (H×V) |
| Outline Depth | 10.9±0.3 mm |
| Holes & Brackets | Side mounting holes (4-M2); Rear mounting holes (4-M2.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G065VN01 V2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut | 55% NTSC (CIE1931) |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | Y |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5.Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H572DAN01.0 | AUO | 5.7" | 1080×1920 |
| H546DAN01.2 | AUO | 5.5" | 1080×1920 |
| H499TAN03.0 | AUO | 5.0" | 720×1280 |
| H572TAN01.0 | AUO | 5.7" | 720×1280 |
| H466TAN02.3 | AUO | 4.7" | 720×1280 |
| H446TAN03.1 | AUO | 4.5" | 720×1280 |
| H446TAN03.0 | AUO | 4.5" | 720×1280 |
| H546AAN01.0 | AUO | 5.5" | 540×960 |
| B070ATN01.0 CELL | AUO | 7.0" | 1024×600 |
| A070SN02 V0 CELL | AUO | 7.0" | 800×600 |
| A050VVN01.2 | AUO | 5.0" | 480×800 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk

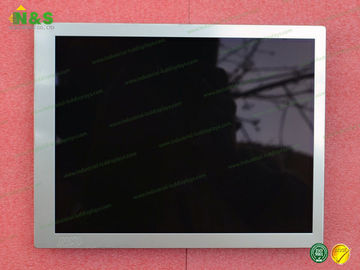

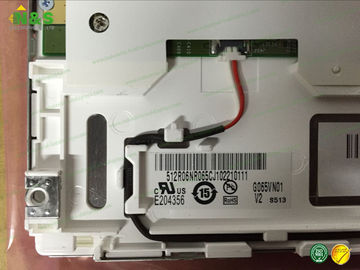

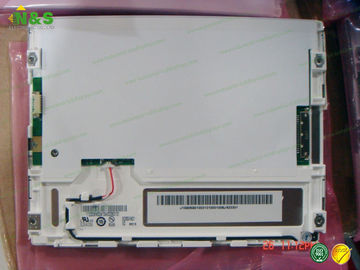

G065VN01 V2 Picture
