AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare , Hard coating (3H)

AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare , Hard coating (3H)
AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare , Hard coating (3H) AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare , Hard coating (3H)

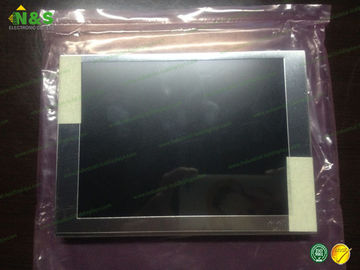

Large Image :  AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare , Hard coating (3H)

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: G057VN01 V2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare , Hard coating (3H)

Description
Panel Type: A-Si TFT-LCD Resolution: 640×480
Panel Size: 5.7 Inch Active Area: 115.2×86.4 Mm
Contrast Ratio: 800:1 (Typ.) Frequency: 60Hz
High Light:

auo display panel

,

auo lcd screen

Resolution 640×480 AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare, Hard coating (3H)



G057VN01 V2 Basic Information

Panel Model G057VN01 V2
Panel Brand AUO
Descrition a-Si TFT-LCD ,5.7 inch, 640×480
Panel Type a-Si TFT-LCD
Model Alias G057VN01 V.2
Operating Temperature -30 ~ 85 °C
Storage Temperature -30 ~ 85 °C



G057VN01 V2 Mechanical Features

Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 141 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.060×0.180 mm (H×V)
Pixel Pitch 0.180×0.180 mm (H×V)
Weight 150/165g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 115.2×86.4 mm (H×V)
Bezel Area 118.2×89.4 mm (H×V)
Outline Dimension 144×104.6 mm (H×V)
Outline Depth 12.3/12.8 (Typ./Max.) mm
Holes & Brackets Rear mounting holes (4-Φ2.6)
Landscape or Portrait Landscape type
Touch Panel Without



G057VN01 V2 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 700 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 15/10 (Typ.)(Tr/Td)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.30 (Max.)(5 points)
Sunlight Readable N



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.



Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T500HVN08.2 CELL AUO 50" 1920×1080
M195XTN01.0 CELL AUO 19.5" 1366×768
H347QTN01.0 AUO 3.5" 320×480
H515DAN01.0 AUO 5.2" 1080×1920
H499TAN03.1 AUO 5.0" 720×1280
G150XG03 V3 CELL AUO 15.0" 1024×768
B080XAN03.1 CELL AUO 7.9" 768×1024
H572DAN01.2 AUO 5.7" 1080×1920
H598AAN01.0 AUO 6.0" 540×960
H497DAN01.1 AUO 5.0" 1080×1920
H650DAN01.0 AUO 6.4" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
