Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Surface: | Antiglare |
| Contrast Ratio: | 250:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

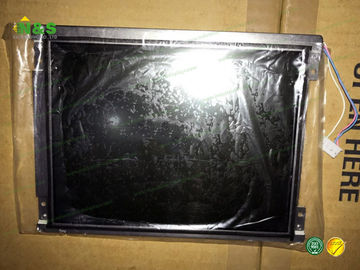

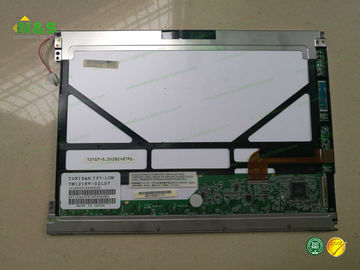

TM121SV-02L07 TORISAN 12.1 inch Normally White with 246×184.5 mm Active Area Contrast Ratio 250:1 (Typ.)
TM121SV-02L07 Basic Information
| Panel Model | TM121SV-02L07 |
| Panel Brand | TORISAN |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
TM121SV-02L07 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 420g (Typ.) |
| Surface | Antiglare |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 250.0×188.5 mm (H×V) |
| Outline Dimension | 275×199 mm (H×V) |
| Outline Depth | 5.7 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
TM121SV-02L07 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 120 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30/20 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.330; Wy:0.350 |
| Sunlight Readable | N |
