Product Details:
|
| Panel Model: | LTA084C190F | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Outline: | 203×143.5 Mm |
| Contrast Ratio: | 400:1 (Typ.) | ||
| High Light: | industrial touch screen display,industrial lcd panel |
||

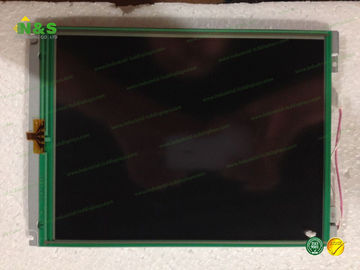

New and original LTA084C190F 8.4 inch 800×600 resolution Active Area 170.4×127.8 mm Display Colors 262K (6-bit)
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in LCD screen international trade communication.
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
7. 1 Year warranty for our LCD screen replacements.
LTA084C190F Basic Information
| Panel Model | LTA084C190F |
| Panel Brand | Toshiba Mobile Display |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
LTA084C190F Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 370g (typ) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 174.6×132.2 mm (H×V) |
| Outline Dimension | 203×143.5 mm (H×V) |
| Outline Depth | 8.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
LTA084C190F Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
