Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Surface: | Antiglare |
| Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

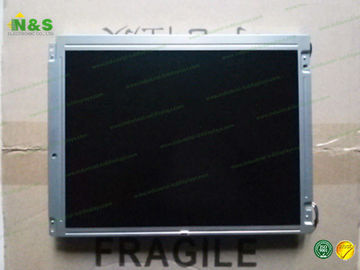

PD104VT3 PVI TFT LCD Module10.4 inch Active Area 211.2×158.4 mm Contrast Ratio 400:1 (Typ.) Frequency 60Hz
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
PD104VT3 Basic Information
| Panel Model | PD104VT3 |
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
PD104VT3 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 516±20g |
| Surface | Antiglare |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.2×162.4 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 12.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
PD104VT3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.309; Wy:0.337 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
