Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 480×234 | Surface: | Antiglare, Hard Coating |
| Contrast Ratio: | 350:1 (Typ.) | Display Colors: | Full Color |
| High Light: | industrial lcd screen,industrial lcd panel |
||

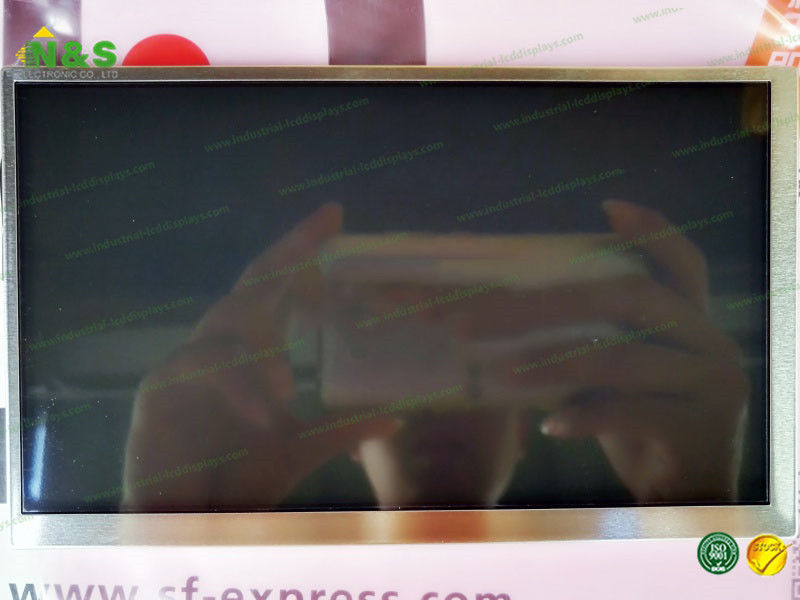

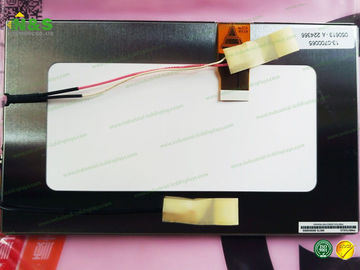

Normally White PW070XU3 TFT LCD Module PVI 7.0 inch resolution 480×234 Surface Antiglare, Hard coating
PW070XU3 Basic Information
| Panel Model | PW070XU3 |
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,7.0 inch, 480×234 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
PW070XU3 Mechanical Features
| Dot Resolution | 480(RGB)×234 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.107×0.370 mm (H×V) |
| Pixel Pitch | 0.321×0.370 mm (H×V) |
| Weight | 164±10g |
| Surface | Antiglare, Hard coating |
| Active Area | 154.08×86.58 mm (H×V) |
| Bezel Area | 156.88×89.38 mm (H×V) |
| Outline Dimension | 166×100 mm (H×V) |
| Outline Depth | 7.2±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
PW070XU3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | Full color () |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 55/55/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ11 | CPT | 4.5" | 480×854 |
| CLAD027GJ01 00XD | CPT | 2.7" | 320×240 |
| 1.22 240RGB204 | BOE | 1.2" | 240×204 |
| CLAG040LM31 | CPT | 4.0" | 480×800 |
| BT040WVG-N60 | BOE | 4.0" | 480×800 |
| BS050HDG-N40-6C00 | BOE | 5.0" | 720×1280 |
| LH450WX3-SH01 | LG Display | 4.5" | 720×1280 |
| TT070WSB-NW1 | BOE | 7.0" | 1024×600 |
| TT070WSB-NW0 | BOE | 7.0" | 1024×600 |
| TT101WSB-NW0 | BOE | 10.1" | 1024×600 |
| C050SWY8-2 | IVO | 5.0" | 480×854 |
| C047SWY2-0 | IVO | 4.7" | 480×854 |
| LC490EQJ-SGE2 | LG Display | 49" | 3840×2160 |
| F068A01-6T1 | Innolux | 6.8" | 720×1280 |
