Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 6.4 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Contrast Ratio: | 400:1 (Typ.) |
| Display Colors: | 262K (6-bit) | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

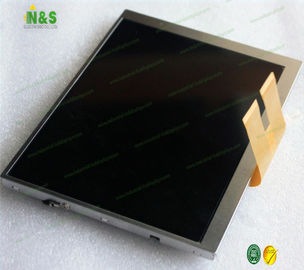

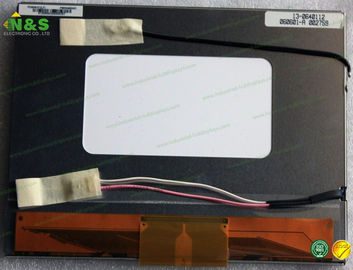

PD064VX1 PVI 6.4 inch Normally White with 129.6×97.44 mm Active Area 146.4×113×7.3 mm Outline Frequency 60Hz
PD064VX1 Basic Information
| Panel Model | PD064VX1 |
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,6.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
PD064VX1 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 125 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0675×0.2030 mm (H×V) |
| Pixel Pitch | 0.2025×0.2030 mm (H×V) |
| Weight | 174±10g |
| Surface | Antiglare, Hard coating |
| Active Area | 129.6×97.44 mm (H×V) |
| Bezel Area | 134.8×101.8 mm (H×V) |
| Outline Dimension | 146.4×113 mm (H×V) |
| Outline Depth | 7.0±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
PD064VX1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/35/15 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.340 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
PD064VX1 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Life Time | 30K(Min.) (Hours) |
| Lamp Voltage | 595±65V |
| Lamp Current | 4.0/6.0/8.0mA (Min./Typ./Max.) |
| Lamp Operating Frequency | 30/45/60KHz (Min./Typ./Max.) |
| Lamp Startup Voltage | 1370/1580V (Typ.)(Ta=+25/0℃) |
| Lamps Power Consumption | 3.57W (Typ.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
