Product Details:
|
| Panel Size: | 6.4 Inch | Resolution: | 640×480 |
|---|---|---|---|
| Active Area: | 129.6×97.44 Mm | Surface: | Antiglare |
| Contrast Ratio: | 400:1 (Typ.) | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

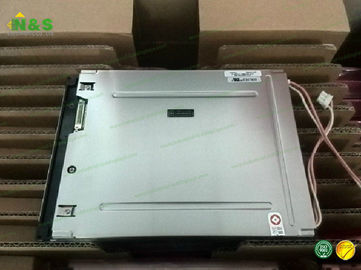

PD064VL1 PVI 6.4 inch Normally White Active Area 129.6×97.44 mm Surface Antiglare Contrast Ratio 400:1 (Typ.)
PD064VL1 Basic Information
| Panel Model | PD064VL1 |
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,6.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 70 °C |
| Remarks | DE/SYNC Mode, With reverse scan switch. |
PD064VL1 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 125 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0675×0.2030 mm (H×V) |
| Pixel Pitch | 0.2025×0.2030 mm (H×V) |
| Weight | 332±10g |
| Surface | Antiglare |
| Active Area | 129.6×97.44 mm (H×V) |
| Bezel Area | 134.8×101.8 mm (H×V) |
| Outline Dimension | 175.4×126.9 mm (H×V) |
| Outline Depth | 12.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ2.2; 2-2.4×3.2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
PD064VL1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.294; Wy:0.308 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Transmissivity | 7.2% (Typ.)(with Polarizer) |
| Sunlight Readable | N |
