Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Outline: | 276×209×10.6 Mm |
| Surface: | Antiglare | Contrast Ratio: | 600:1 (Typ.) |
| High Light: | lg display panel,lg lcd display |
||

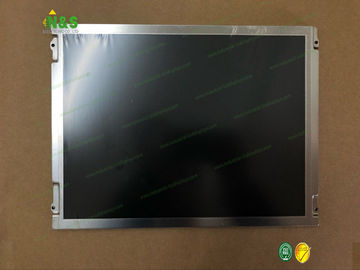

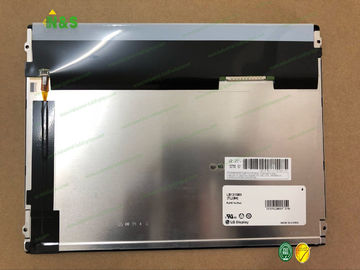

12.1 inch LB121S03-TL04 TFT LCD Module 800×600 resolution Surface Antiglare for Industrial Application panel
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
| LH300WQ5-SH02 | LG Display | 3.0" | 240×400 |
| LH176J03-SH03 | LG Display | 1.8" | 220×176 |
| LH300WQ2-SH16 | LG Display | 3.0" | 240×400 |
| LH570WX2-SH01 | LG Display | 5.7" | 720×1280 |
| LC320DXY-SGA1 | LG Display | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LB121S03-TL04 Basic Information
| Panel Model | LB121S03-TL04 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LB121S03 (TL)(04) |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
LB121S03-TL04 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 600g (Max.) |
| Surface | Antiglare |
| Active Area | 246×184.5 mm (H×V) |
| Outline Dimension | 276×209 mm (H×V) |
| Outline Depth | 10.6 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LB121S03-TL04 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.305; Wy:0.320 |
| White Variation | 1.25/1.45 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
