Product Details:
|
| Panel Size: | 21.5 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Active Area: | 476.64×268.11 Mm | Contrast Ratio: | 1000:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 5.0V (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

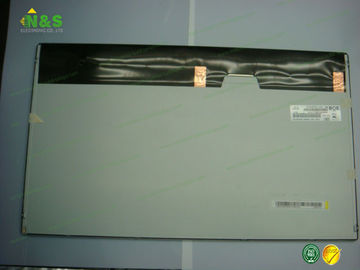

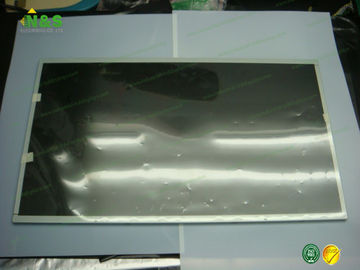

Normally White BOE HT215F01-100 21.5 inch a-Si TFT-LCD 1920×1080 Outline 495.6×292.2×10.7 mm
HT215F01-100 Basic Information
| Panel Model | HT215F01-100 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Normal version: 4850, 4D30; For Samsung version: 4851, 4D31; For Dell version: 4852; F-grade version: 4FFF. |
HT215F01-100 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 102 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch | 0.24825×0.24825 mm (H×V) |
| Weight | 1.79Kgs (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 476.64×268.11 mm (H×V) |
| Bezel Area | 479.8×271.3 mm (H×V) |
| Outline Dimension | 495.6×292.2 mm (H×V) |
| Outline Depth | 7.7/10.7 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
