Product Details:
|
| Panel Model: | HT150X02-100 | Panel Brand: | BOE |
|---|---|---|---|
| Descrition: | A-Si TFT-LCD | Outline: | 326.5×253.5×11.9 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

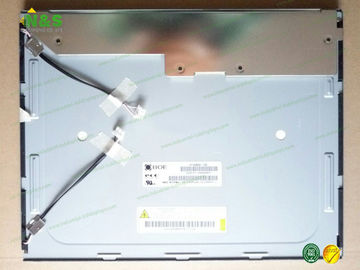

Normally White BOE HT150X02-100 LCD Displays 15.0 inch 1024×768 Active Area 304.128×228.096 mm
HT150X02-100 Basic Information
| Panel Model | HT150X02-100 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HT150X02-100 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.20Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.4/11.9 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV320WHB-N80 | BOE | 31.5" | 1366×768 |
| BS053HDG-N50-6200 | BOE | 5.3" | 720×1280 |
| HV550QUB-B10 | BOE | 55" | 3840×2160 |
| BF039WVQ-100 | BOE | 3.9" | 480×800 |
| HV480FH2-600 | BOE | 48" | 1920×1080 |
| HV320WHB-N10 | BOE | 31.5" | 1366×768 |
| MT207FHB-N20 | BOE | 20.7" | 1920×1080 |
| MT207FHB-N10 | BOE | 20.7" | 1920×1080 |
| HV320WHB-N06 | BOE | 31.5" | 1366×768 |
| BP070WS7-500 | BOE | 7.0" | 1024×600 |
| TV070WVE-N10 | BOE | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
