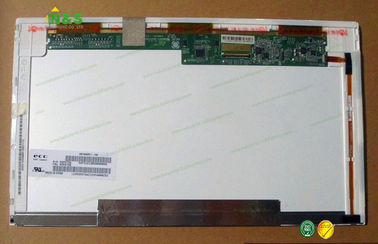

14.0'' Industrial Grade Touch Screen Monitor 1366×768 Resolution HB140WX1-100 BOE

14.0'' Industrial Grade Touch Screen Monitor 1366×768 Resolution HB140WX1-100 BOE
14.0'' Industrial Grade Touch Screen Monitor 1366×768 Resolution HB140WX1-100 BOE

Large Image :  14.0'' Industrial Grade Touch Screen Monitor 1366×768 Resolution HB140WX1-100 BOE

Product Details:
Place of Origin: KOREA
Brand Name: BOE
Certification: ISO9001
Model Number: HB140WX1-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

14.0'' Industrial Grade Touch Screen Monitor 1366×768 Resolution HB140WX1-100 BOE

Description
Panel Type: A-Si TFT-LCD Panel Model: HB140WX1-100
Contrast Ratio: 600:1 (Typ.) Display Colors: 262K (6-bit)
Response Time: 8 (Typ.)(Tr+Td) Frequency: 60Hz
High Light:

industrial touch screen display

,

industrial lcd panel

HB140WX1-100 BOE 14.0inch industrial lcd screen 1366×768 resolution Active Area 309.399×173.952 mm



HB140WX1-100 Basic Information

Panel Model HB140WX1-100
Panel Brand BOE
Descrition a-Si TFT-LCD ,14.0 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks for Lenovo, HP, Samsung


HB140WX1-100 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 112 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0755×0.2265 mm (H×V)
Pixel Pitch 0.2265×0.2265 mm (H×V)
Weight 350g (Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 309.399×173.952 mm (H×V)
Bezel Area 313.60×177.36 mm (H×V)
Outline Dimension 323.5×192 mm (H×V)
Outline Depth 4.9/5.2 (Typ./Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.



Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
BV043WVL-N50-1Q00 BOE 4.3" 480×800
BV050SQE-N42-3Q00 BOE 5.0" 540×960
HV550FHB-N20 BOE 55" 1920×1080
BS055FHG-E41-6900 BOE 5.5" 1080×1920
BS055FHG-N41-6901 BOE 5.5" 1080×1920
BS050FHE-E40-6Q00 BOE 5.0" 1080×1920
AV074ZAB-NW0 BOE 7.4" 1280×400
HV550QUB-B11 BOE 55" 3840×2160
BV050FWE-N41 BOE 5.0" 480×854
DV230FHD-NT0 BOE 23.0" 1920×1080
BA070WS2-102 BOE 7.0" 1024×600
