Product Details:
|
| Diagonal Size: | 11.6 Inch | Active Area: | 256.125×144 Mm |
|---|---|---|---|
| Type: | A-Si TFT-LCD | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||

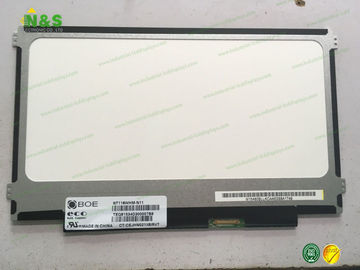

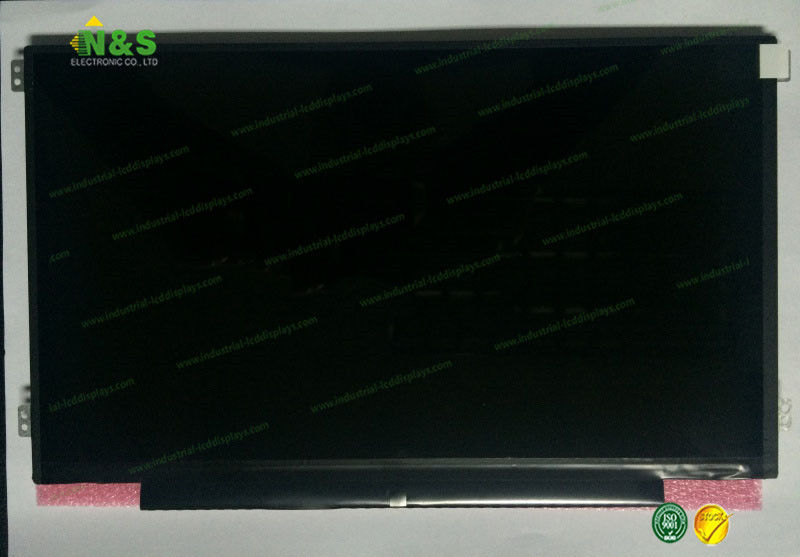

NT116WHM-N11 BOE Industrial LCD Displays with 256.125×144 mm Active Area Contrast Ratio 500:1 (Typ.)
NT116WHM-N11 Basic Information
| Panel Model | NT116WHM-N11 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | for Lenovo |
NT116WHM-N11 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 135 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch | 0.1875×0.1875 mm (H×V) |
| Weight | 235g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 256.125×144 mm (H×V) |
| Outline Dimension | 268×168 mm (H×V) |
| Outline Depth | 3.6 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV550QU2-301 | BOE | 55" | 3840×2160 |
| BA070WV4-300 | BOE | 7.0" | 800×480 |
| BF047WVG-100 | BOE | 4.7" | 480×800 |
| BF055QHQ-100 | BOE | 5.5" | 540×960 |
| BF040WVMG003 | BOE | 4.0" | 480×800 |
| BD039WVL-100 | BOE | 4.0" | 480×800 |
| BF050WVQ-100 | BOE | 5.0" | 480×854 |
| BP080WX7-100 | BOE | 8.0" | 1280×800 |
| BF050FWME501 | BOE | 5.0" | 480×854 |
| HN133WU3-100 | BOE | 13.3" | 1920×1080 |
| BA060WV2-100 | BOE | 6.0" | 480×854 |
