Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area 304.128×228.096 mm

Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area	304.128×228.096 mm
Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area	304.128×228.096 mm Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area	304.128×228.096 mm

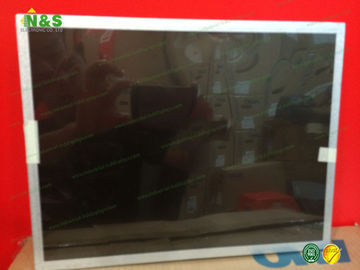

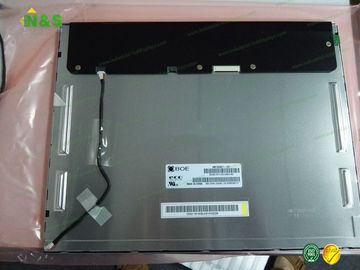

Large Image :  Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area 304.128×228.096 mm

Product Details:
Place of Origin: KOREA
Brand Name: BOE
Certification: ISO9001
Model Number: HM150X01-101
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area 304.128×228.096 mm

Description
Panel Type: A-Si TFT-LCD Panel Size: 15.0 Inch
Resolution: 1024×768 Outline: 326.5×253.5×11.9 Mm
Contrast Ratio: 700:1 (Typ.) Frequency: 60Hz
High Light:

industrial touch screen display

,

industrial lcd screen

Normally White HM150X01-101 15.0inch 1024×768 resolution tft lcd module Active Area 304.128×228.096 mm



HM150X01-101 Basic Information

Panel Model HM150X01-101
Panel Brand BOE
Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C


HM150X01-101 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 85 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.099×0.297 mm (H×V)
Pixel Pitch 0.297×0.297 mm (H×V)
Weight 1.20Kgs (Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 304.128×228.096 mm (H×V)
Bezel Area 307.4×231.3 mm (H×V)
Outline Dimension 326.5×253.5 mm (H×V)
Outline Depth 11.3/11.9 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
BT033HVMG001 BOE 3.3" 320×480
BA101WS2-101 BOE 10.1" 1024×600
HV280WX2-270 BOE 27.5" 1366×768
BF053HDMU401 BOE 5.3" 720×1280
BD039WVL-600 BOE 4.0" 480×800
BF055HDQ-100 BOE 5.5" 720×1280
HV320WX2-281 BOE 31.5" 1366×768
BT050FWQ-N80 BOE 5.0" 480×854
BD039WVQ-810 BOE 4.0" 480×800
HV320WX2-206 BOE 31.5" 1366×768
