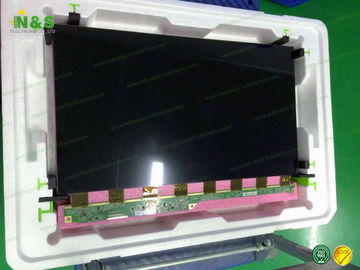

BOE 23.6 inch MV236FHB-N10 TFT LCD Module Normally Black 1920×1080 Surface Antiglare (Haze 25%), Hard coating (3H)

BOE 23.6 inch MV236FHB-N10 TFT LCD Module Normally Black 1920×1080 Surface Antiglare (Haze 25%), Hard coating (3H)
BOE 23.6 inch MV236FHB-N10 TFT LCD Module Normally Black 1920×1080 Surface Antiglare (Haze 25%), Hard coating (3H)

Large Image :  BOE 23.6 inch MV236FHB-N10 TFT LCD Module Normally Black 1920×1080 Surface Antiglare (Haze 25%), Hard coating (3H)

Product Details:
Place of Origin: KOREA
Brand Name: BOE
Certification: ISO9001
Model Number: MV236FHB-N10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

BOE 23.6 inch MV236FHB-N10 TFT LCD Module Normally Black 1920×1080 Surface Antiglare (Haze 25%), Hard coating (3H)

Description
Panel Type: A-Si TFT-LCD Active Area: 521.28×293.22 Mm
Outline: 529.66×303.16 Mm Resolution: 1920×1080
Frequency: 60Hz
High Light:

industrial lcd screen

,

industrial lcd panel

BOE 23.6 inch MV236FHB-N10 TFT LCD Module Normally Black 1920×1080 Surface Antiglare (Haze 25%), Hard coating (3H)



MV236FHB-N10 Basic Information

Panel Model MV236FHB-N10
Panel Brand BOE
Descrition a-Si TFT-LCD ,23.6 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks TCO 6.0 , ES 6.0 compliant


MV236FHB-N10 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 93 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0905×0.2715 mm (H×V)
Pixel Pitch 0.2715×0.2715 mm (H×V)
Weight 490g (Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 521.28×293.22 mm (H×V)
Outline Dimension 529.66×303.16 mm (H×V)
Landscape or Portrait Landscape type
Touch Panel Without


MV236FHB-N10 Optical Features

Display Mode ADS, Normally Black, Transmissive
Brightness 0 cd/m²
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
Transmissivity 5.3% (Typ.)(with Polarizer)
Sunlight Readable N



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
BP070WS1-600 BOE 7.0" 1024×600
HV480WU2-302 BOE 48" 1920×1080
HV480WU2-301 BOE 48" 1920×1080
1.22 240RGB204 BOE 1.2" 240×204
BT040WVG-N60 BOE 4.0" 480×800
BS050HDG-N40-6C00 BOE 5.0" 720×1280
TT070WSB-NW1 BOE 7.0" 1024×600
TT070WSB-NW0 BOE 7.0" 1024×600
TT101WSB-NW0 BOE 10.1" 1024×600
TT070WSQ-N10 BOE 7.0" 1024×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
