Product Details:
|
Panel Type: | A-Si TFT-LCD | Panel Size: | 21.5 Inch |
---|---|---|---|
Outline: | 502.7×298.5×15.06 Mm | Surface: | Hard Coating (6H) |
Contrast Ratio: | 1000:1 (Typ.) | Frequency: | 60Hz |
High Light: | tft lcd display,lcd display panel |

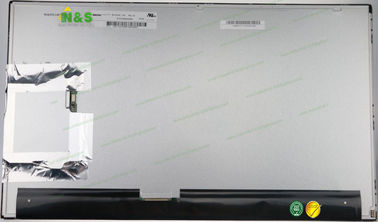

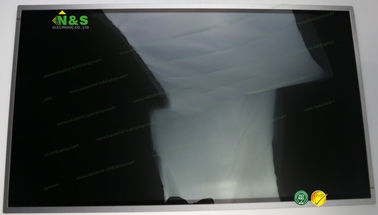

INNOLUX 21.5 inch M215HGK-L30 1920×1080 resolution for Industrial Application panel Normally White
M215HGK-L30 Basic Information
Panel Model | M215HGK-L30 |
Panel Brand | INNOLUX |
Descrition | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
Remarks | InnoTouch I |
M215HGK-L30 Mechanical Features
Dot Resolution | 1920(RGB)×1080 (FHD) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 102 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.08265×0.24795 mm (H×V) |
Pixel Pitch | 0.24795×0.24795 mm (H×V) |
Weight | 2.14±0.08Kgs |
Surface | Hard coating (6H) |
Active Area | 476.064×267.786 mm (H×V) |
Bezel Area | 489.7×281.4 mm (H×V) |
Outline Dimension | 502.7×298.5 mm (H×V) |
Outline Depth | 9.87/15.06 (Typ./Max.) mm |
Landscape or Portrait | Landscape type |
Touch Panel | Embeded (Projected Capacitive Touch) |
M215HGK-L30 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 250 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 72% NTSC (CIE1931) |
Response Time | 1.5/4.3 (Typ.)(Tr/Td) |
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.33 (Max.)(9 points) |
Sunlight Readable | N |
