Product Details:
|
| Panel Size: | 40 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Contrast Ratio: | 5000:1 (Typ.) |
| Response Time: | 8.5 (Typ.)(G To G) | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd display panel |
||

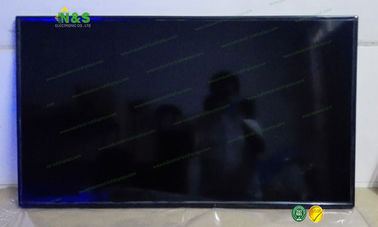

V400HJ6-ME2 40 inch INNOLUX Normally Black with 878.112×485.352 mm Active Area Contrast Ratio 5000:1 (Typ.)
V400HJ6-ME2 Basic Information
| Panel Model | V400HJ6-ME2 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,40 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Inno-Module |
V400HJ6-ME2 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 55 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.15245×0.4494 mm (H×V) |
| Pixel Pitch | 0.45735×0.4494 mm (H×V) |
| Weight | 7.50Kgs (Typ.) |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Active Area | 878.112×485.352 mm (H×V) |
| Bezel Area | 879.9×487.2 mm (H×V) |
| Outline Dimension | 903.7×513.8 mm (H×V) |
| Outline Depth | 17.4/20.4 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V650HP1-PS6 Rev.C1 | Innolux | 65" | 1920×1080 |
| M220ZGE-P02 | Innolux | 22.0" | 1680×1050 |
| V420HJ2-P01 | Innolux | 42" | 1920×1080 |
| F05501-01Z | Innolux | 5.5" | 720×1280 |
| EE101IA-01D | Innolux | 10.1" | 1280×800 |
| HE070IA-02E | Innolux | 7.0" | 1280×800 |
| HE101NA-02C | Innolux | 10.1" | 1280×800 |
| ZE090NA-01B | Innolux | 9.0" | 1280×800 |
| HE080NA-04I | Innolux | 8.0" | 1024×768 |
| HE070NA-13C | Innolux | 7.0" | 1024×600 |
| HE070NA-13B | Innolux | 7.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
V400HJ6-ME2 Optical Features
| Display Mode | Super MVA, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 5000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 8.5 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.280; Wy:0.290 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
