Product Details:
|
| Panel Brand: | INNOLUX | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Panel Size: | 14.0 Inch | Resolution: | 1366×768 |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||

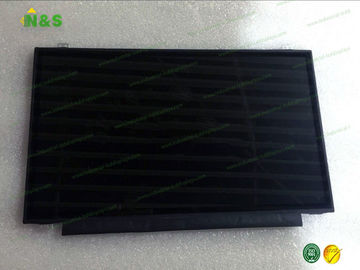

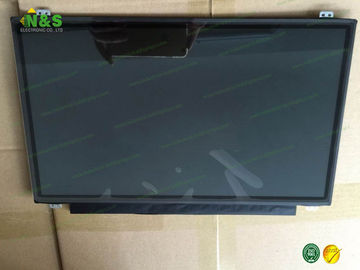

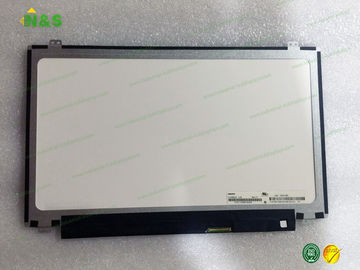

Normally White 14.0 inch N140BGK-L33 INNOLUX Contrast Ratio 500:1 (Typ.) Active Area 309.399×173.952 mm
N140BGK-L33 Basic Information
| Panel Model | N140BGK-L33 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | for Lenovo G410s Touch |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
N140BGK-L33 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 112 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch | 0.2265×0.2265 mm (H×V) |
| Weight | 385g (Max.) |
| Active Area | 309.399×173.952 mm (H×V) |
| Outline Depth | 3.85/4.3 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (Projected Capacitive Touch) |
N140BGK-L33 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 4/6 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M236HGE-P02 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P03 | Innolux | 21.5" | 1920×1080 |
| V236H3-PS1 | Innolux | 23.6" | 1920×1080 |
| HE050NA-01F | Innolux | 5.0" | 800×480 |
| M236HGE-P01 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P01 | Innolux | 21.5" | 1920×1080 |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
