Portable 10.1 Inch LCD Panel N101BGE-L21 , Tft Lcd Display INNOLUX 222.52×125.11 Mm Active Area

Portable 10.1 Inch LCD Panel N101BGE-L21 , Tft Lcd Display INNOLUX 222.52×125.11 Mm Active Area
Portable 10.1 Inch LCD Panel N101BGE-L21 , Tft Lcd Display INNOLUX 222.52×125.11 Mm Active Area

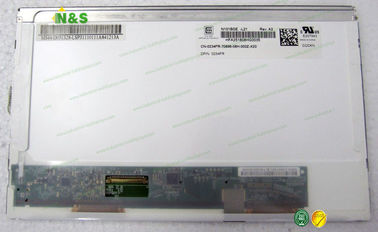

Large Image :  Portable 10.1 Inch LCD Panel N101BGE-L21 , Tft Lcd Display INNOLUX 222.52×125.11 Mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N101BGE-L21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Portable 10.1 Inch LCD Panel N101BGE-L21 , Tft Lcd Display INNOLUX 222.52×125.11 Mm Active Area

Description
Panel Type: A-Si TFT-LCD Panel Size: 10.1 Inch
Resolution: 1366×768 Outline: 235×143×5.2 Mm
Contrast Ratio: 500:1 (Typ.) Frequency: 60Hz
High Light:

tft lcd display

,

lcd display panel

Normally White 10.1 inch N101BGE-L21 tft lcd display INNOLUX 222.52×125.11 mm Active Area Frequency 60Hz



What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
EE070NA-01L Innolux 7.0" 1024×600
EE070NA-01D Innolux 7.0" 1024×600
AT070TN90 V.1 Innolux 7.0" 800×480
AT070TN00 V.1 Innolux 7.0" 480×234
AT050TN30 Innolux 5.0" 480×272
LW700AT6005 Innolux 7.0" 800×480

Pls contact to us for more stock information: salespm@nselectronic.com.hk



N101BGE-L21 Basic Information

Panel Model N101BGE-L21
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,10.1 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C


N101BGE-L21 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 155 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0543×0.1629 mm (H×V)
Pixel Pitch 0.1629×0.1629 mm (H×V)
Weight 185/200g (Typ./Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 222.52×125.11 mm (H×V)
Bezel Area 226.34×128.1 mm (H×V)
Outline Dimension 235×143 mm (H×V)
Outline Depth 4.9/5.2 (Typ./Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


N101BGE-L21 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N
