Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 13.3 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Surface: | Antiglare |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||

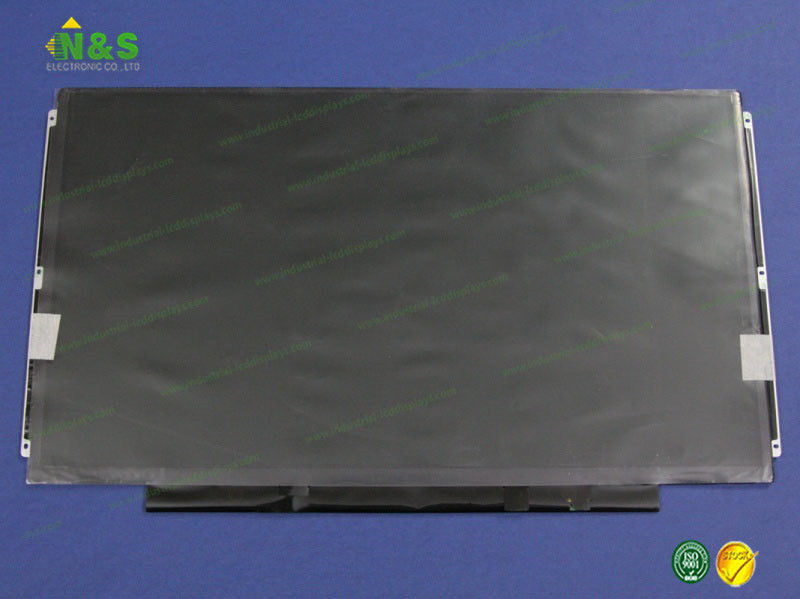

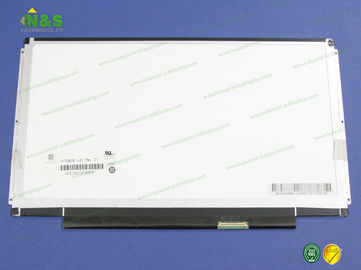

Normally White N133BGE-L31 1366×768 resolution TFT LCD Module Surface Antiglare Contrast Ratio 500:1 (Typ.)
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M236HGE-P02 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P03 | Innolux | 21.5" | 1920×1080 |
| V236H3-PS1 | Innolux | 23.6" | 1920×1080 |
| HE050NA-01F | Innolux | 5.0" | 800×480 |
| M236HGE-P01 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P01 | Innolux | 21.5" | 1920×1080 |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
N133BGE-L31 Basic Information
| Panel Model | N133BGE-L31 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Ultra Slim |
N133BGE-L31 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 118 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch | 0.2148×0.2148 mm (H×V) |
| Weight | 280/290g (Typ./Max.) |
| Surface | Antiglare |
| Active Area | 293.42×164.97 mm (H×V) |
| Bezel Area | 296.82×168.37 mm (H×V) |
| Outline Dimension | 314.1×188.75 mm (H×V) |
| Outline Depth | 3.3/3.6 (Typ./Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (6 pcs) on left, right brackets |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N133BGE-L31 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 8/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
