Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Outline: | 323.5×192×5.2 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | lcd display panel,innolux lcd screen |
||

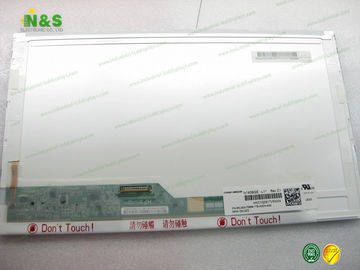

Normally White N140BGE-L11 14.0 inch Outline 323.5×192×5.2 mm 1366×768 resolution Surface Antiglare, Hard coating (3H)
N140BGE-L11 Basic Information
| Panel Model | N140BGE-L11 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N140BGE-L11 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 112 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch | 0.2265×0.2265 mm (H×V) |
| Weight | 335/350g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 309.399×173.952 mm (H×V) |
| Bezel Area | 312.80×177.36 mm (H×V) |
| Outline Dimension | 323.5×192 mm (H×V) |
| Outline Depth | 5.2 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N140BGE-L11 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
