Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 20.0 Inch |
|---|---|---|---|
| Resolution: | 1600×900 | Outline: | 462.8×272 Mm |
| Contrast Ratio: | 1000:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd display panel |
||

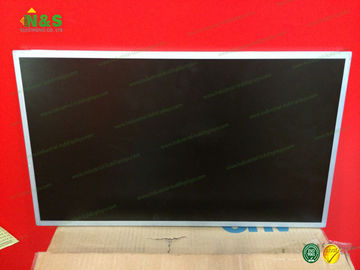

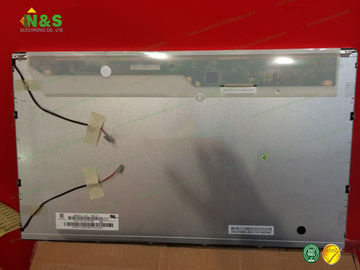

CMO 20.0 inch Normally White M200O1-L02 TFT LCD Module Contrast Ratio 1000:1 (Typ.) Frequency 60Hz
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BF039WVQ-100 | BOE | 3.9" | 480×800 |
| ST3151A04-8 | CSOT | 31.5" | 1366×768 |
| TM060XYSP01 | Tianma | 6.0" | 540×960 |
| LH430WV6-SH01 | LG Display | 4.3" | 480×800 |
| LH500WX2-SH05 | LG Display | 5.0" | 720×1280 |
| HV480FH2-600 | BOE | 48" | 1920×1080 |
| LC320HU1A | PANDA | 31.5" | 2560×1440 |
| P097ZCA-1Z2 | Innolux | 9.7" | 1024×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
M200O1-L02 Basic Information
| Panel Model | M200O1-L02 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,20.0 inch, 1600×900 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | TCO'03 compliance |
M200O1-L02 Mechanical Features
| Dot Resolution | 1600(RGB)×900 (HD+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 91 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch | 0.27675×0.27675 mm (H×V) |
| Weight | 1.65/1.70Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 442.8×249.075 mm (H×V) |
| Bezel Area | 446.8×253.2 mm (H×V) |
| Outline Dimension | 462.8×272 mm (H×V) |
| Outline Depth | 10.4±0.5 mm |
| Holes & Brackets | Side mounting holes (8-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M200O1-L02 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
